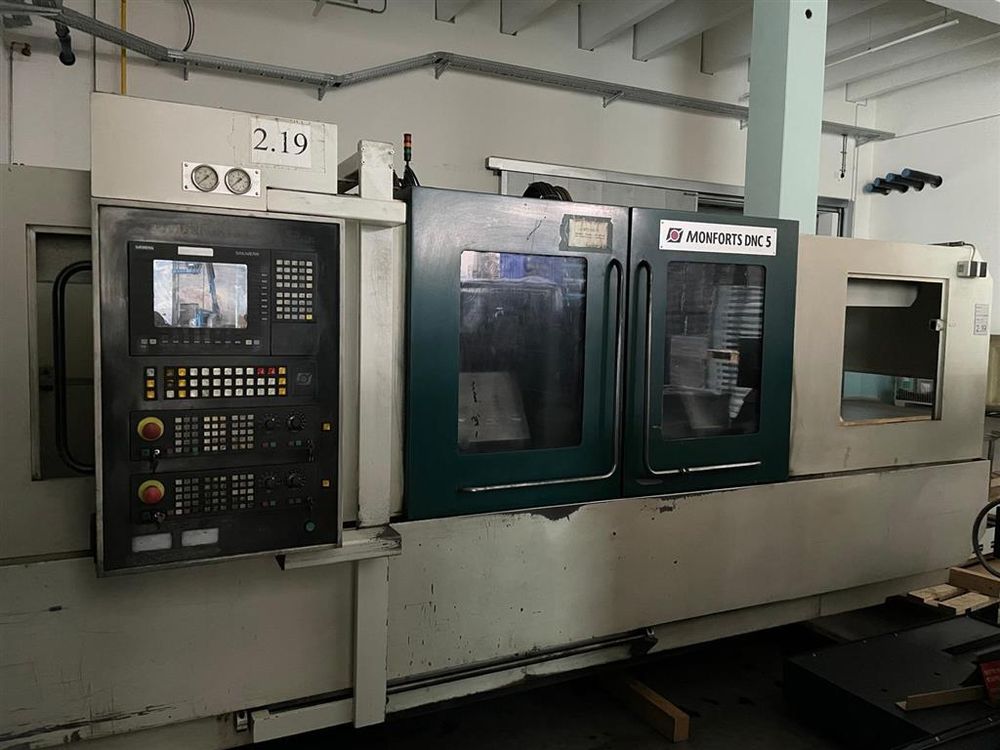

Monforts Control Siemens 840 D 4,000 RPM DNC 5 5 Axis
Ref :
2750068-3-MT
Condition :
Used
Manufacturer :
Monforts
Controller :
Control Siemens 840 D
Spindle Speed :
4,000 RPM
Model :
DNC 5
Nb Of Axis :
5 Axis
Year(s) :
2002
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Travel X1 260 mm
Travel X2 260 mm
Travel Y1 600 mm
Travel Y2 600 mm
C-Axis 0.001°
Control Siemens 840 D
Bar Capacity Spindle 1 85 mm
Swing Diameter Over Bed Slide mm
Spindle 1 Speed 4,000 RPM
Spindle 1 Power 18 kW
Spindle 2 Speed 4,000 RPM
Spindle 2 Power 24 kW
Max Torque on Spindle 630 Nm
Milling Spindle Power 8.8 kW
Milling Spindle Speed 3,000 RPM
Torque Rotary Tools 28 Nm
Turret No.1 Stations / Rotary Tools 12/12 VDI 40
Turret No.2 Stations / Rotary Tools 12/12 VDI 40
Weight of Machine 13 t
Machine Dimensions 5.7x2.4x2.1 m
Chip Conveyor
Parts and Total Counter
Automatic Separation Wall
Standard Set of Tool Holders
Power Chuck 2 x 250 mm
Manual Tool Eye L & R
