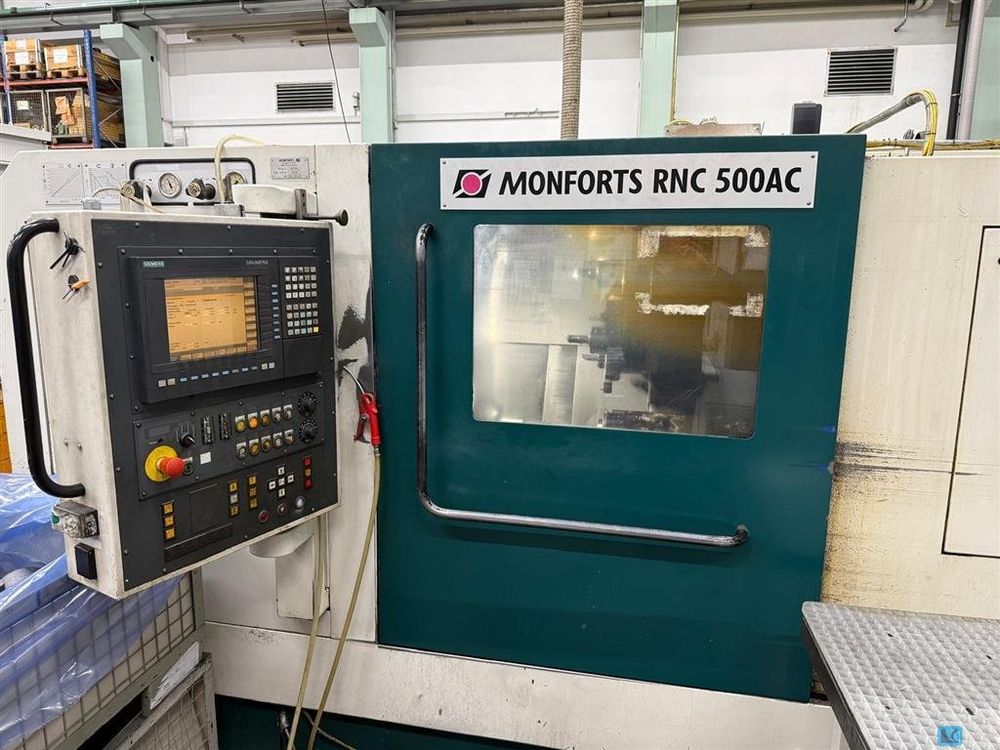

Monforts Siemens 840 D CNC 4000 rpm RNC 500 AC 3 Axis
Ref :
2788131-3-MT
Condition :
Used
Manufacturer :
Monforts
Controller :
Siemens 840 D CNC
Spindle Speed :
4000 rpm
Model :
RNC 500 AC
Nb Of Axis :
3 Axis
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Turning diameter: 500 mm
Turning length: 1000 mm
Feedrate: 0 – 10000 mm/min
Rapid traverse: 10000 mm/min
C axis: 360000 x 0.001°
Control: Siemens 840 D CNC
Programmable tailstock
Chip conveyor
Spindle power: 42 / 28 kW
Spindle speed: 31 – 4000 rpm
Max torque: 345 Nm
Rotary tool speed: 2000 rpm
Rotary tool power: 3.5 kW
Rotary tool torque: 22.5 Nm
Turret stations: 12
Rotary tool stations: 12
Tool interface: VDI 40
Quill diameter: 90 mm
Quill stroke: 80 mm
Tailstock taper: ISO SK30
Tailstock travel: 600 mm
Spindle passage: 66 mm
Total power: 30 kW
Machine weight: 7.5 t
Machine dimensions: 8000 x 3000 x 4000 mm
