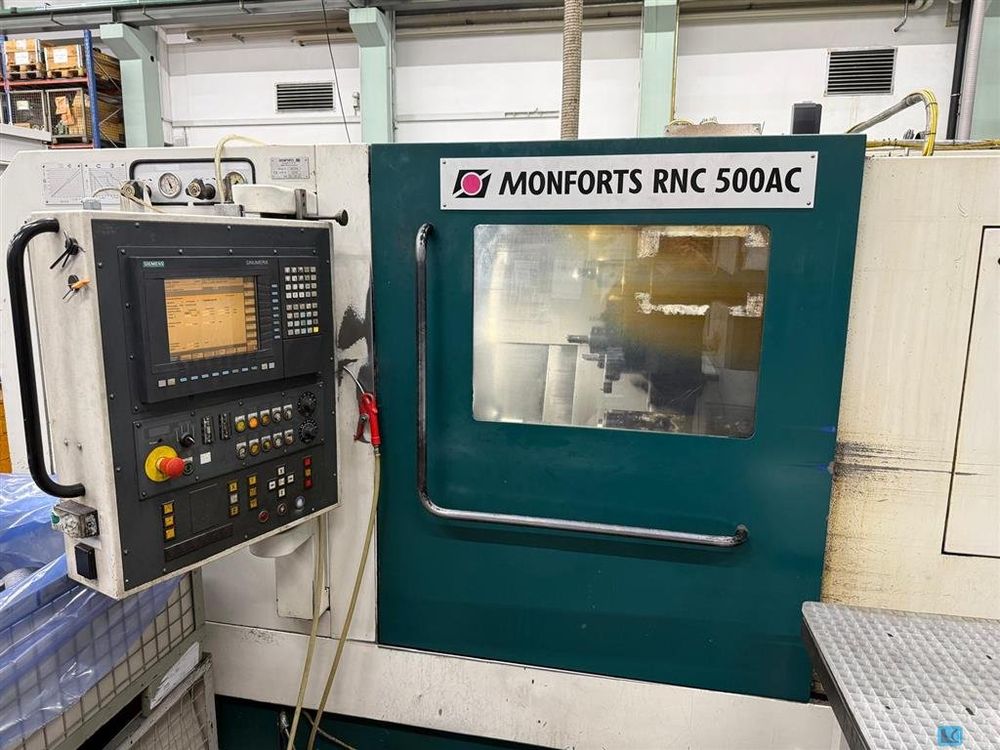

Monforts Control Siemens 840D 4000 rpm RNC 500 AC 3 Axis
Ref :
2755407-3-MT
Condition :
Used
Manufacturer :
Monforts
Controller :
Control Siemens 840D
Spindle Speed :
4000 rpm
Model :
RNC 500 AC
Nb Of Axis :
3 Axis
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Turning diameter 500 mm
Turning length 1000 mm
C-axis 360000 × 0.001°
Control Siemens 840D
Spindle power 42/28 kW
Spindle speed 31–4000 rpm
Spindle torque 345 Nm
Feeds stepless 0–10000 mm/min
Rapid traverse 10000 mm/min
Turret stations 12/12 VDI 40
Rotary tool speed 2000 rpm
Rotary tool power 3.5 kW
Rotary tool torque 22.5 Nm
Rotary tool holders 4 axial / 4 radial
Spindle bore 66 mm
Quill diameter 90 mm
Quill stroke 80 mm
Tailstock quill taper ISO SK30
Tailstock travel 600 mm
Machine power requirement 30 kW
Machine weight 7.5 t
Machine dimensions 8000×3000×4000 mm
Power chuck Yes
Programmable tailstock Yes
Chip conveyor Yes
