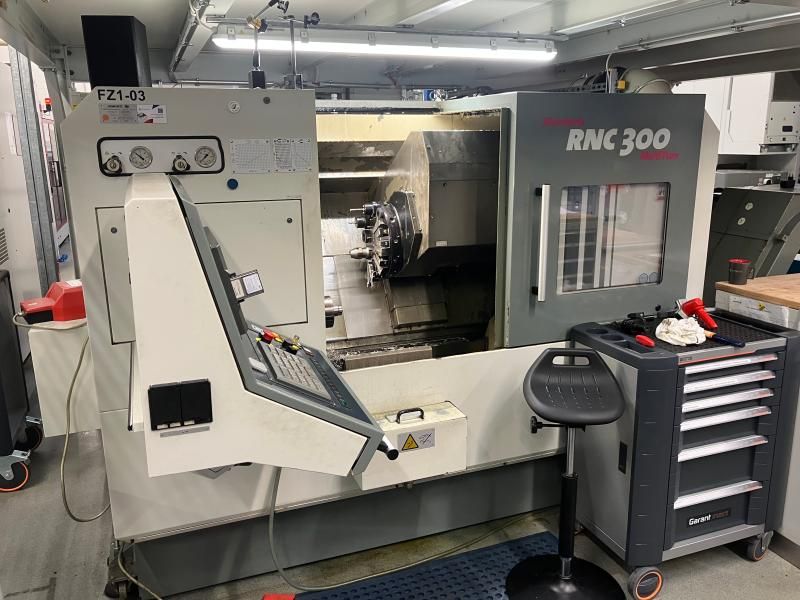

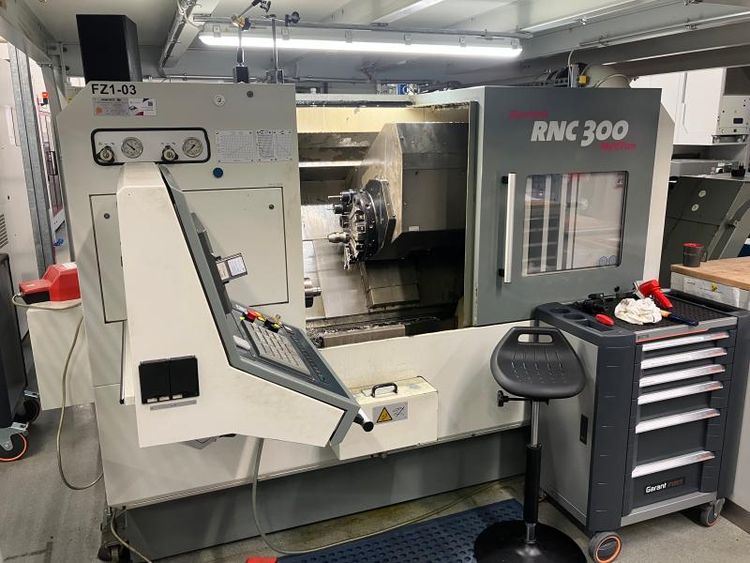

Monforts Fanuc Series 18i-TB 5000 rpm RNC 300 MultiTurn 2 Axis
Ref :
2772886-3-AW
Condition :
Used
Manufacturer :
Monforts
Controller :
Fanuc Series 18i-TB
Spindle Speed :
5000 rpm
Model :
RNC 300 MultiTurn
Nb Of Axis :
2 Axis
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: Fanuc Series 18i-TB
Driven tools
Y-axis
Tailstock
Chip conveyor with integrated coolant system
Swing over bed cover: 380 mm
Spindle bore: 67 mm
Spindle speed: 25–5000 rpm
Spindle motor power: 23 kW
Turret stations: 12
Tool interface: VDI 30
3-jaw chuck diameter: 165 mm
Collet chuck system
Driven tools with ER25 collet
Toolholders included: 25 pcs
Total power consumption: 41 kVA
Power supply: 400 V / 50 Hz
Machine dimensions with chip conveyor: 4100 × 2600 × 2100 mm
Machine dimensions basic unit: 3000 × 2400 × 2100 mm
Machine weight: approx. 6 t
Operating hours: approx. 20,000 h
