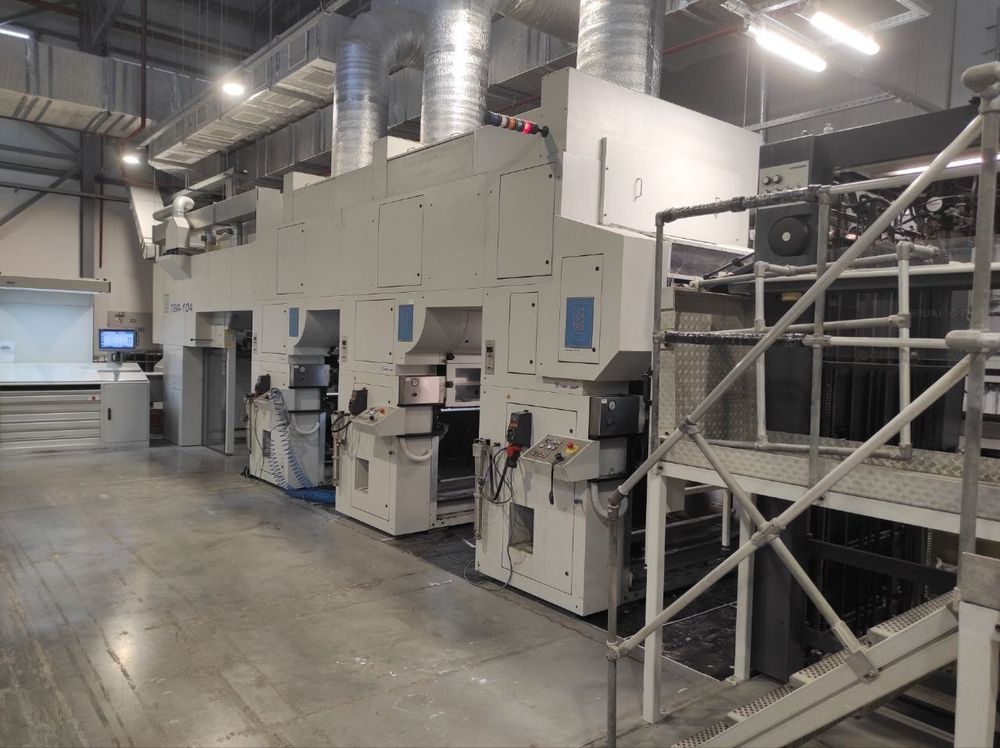

Moog 3 TBR 740/1040 740x1040 mm

Ref : 2718354-4-AW
Condition : Used
Manufacturer : Moog
Model : 3 TBR 740/1040
Size : 740x1040 mm
Year(s) : 2003
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Max sheet size: 740x1040 mm
Min sheet size: 370x520 mm
Printing surface: 720 x 1020 mm
Materials to print: Paper from 80 g/m2 / Board up to 400 g/m2
Production speed: 12.000 form cylinder r.p.h. mechanically with solid cylinders; production speed up to 10.000 sheets per hour

Overhauled in 2019
Kind of Form Cylinders: solid cylinders engraved or etched, cylinders for photopolymer plates (1 clamping cylinders)
cylinder diameter 300 mm fix sized
3 Gravure printing units with hydraulic impression throw-on
• double sized pressure cylinder and complete inking system
Consisting of:
• doctor blade arrangement, ink pan with inking roller
• ink overflow and hose-connection system incl. drum
• pump and viscosity meter.

Drying Systems:
• GRAFIX drying system for 5 transfer drums between the stations
• Floating dryer with 4 sections towards delivery,consisting of 13 gripper fields, incl. input air ventilator,exhaust ventilator
• Adding a 3 Lamp 200W UV-Drying system at the delivery, complete with switch cabinets and water cooling system
1 interdeck UV Dryer between unit 1 and 2. changeable to unit 2 and 3
Siemens PLC of the latest generation ,3 (new generation)
Touchpanels with WIN CC: Built-in 19” Panel - Control Station with monitor arm for better handling
Built-in Panel - Delivery
Built-in Panel - Feeder
5 new Push-button panels for operation
Profi-Net Service interface
New CPU with software, Ethernet connection to all controls, Teleservice, Visualisation of press speed,
printed sheets and left sheets for the actual production planning on an external computer possible.
