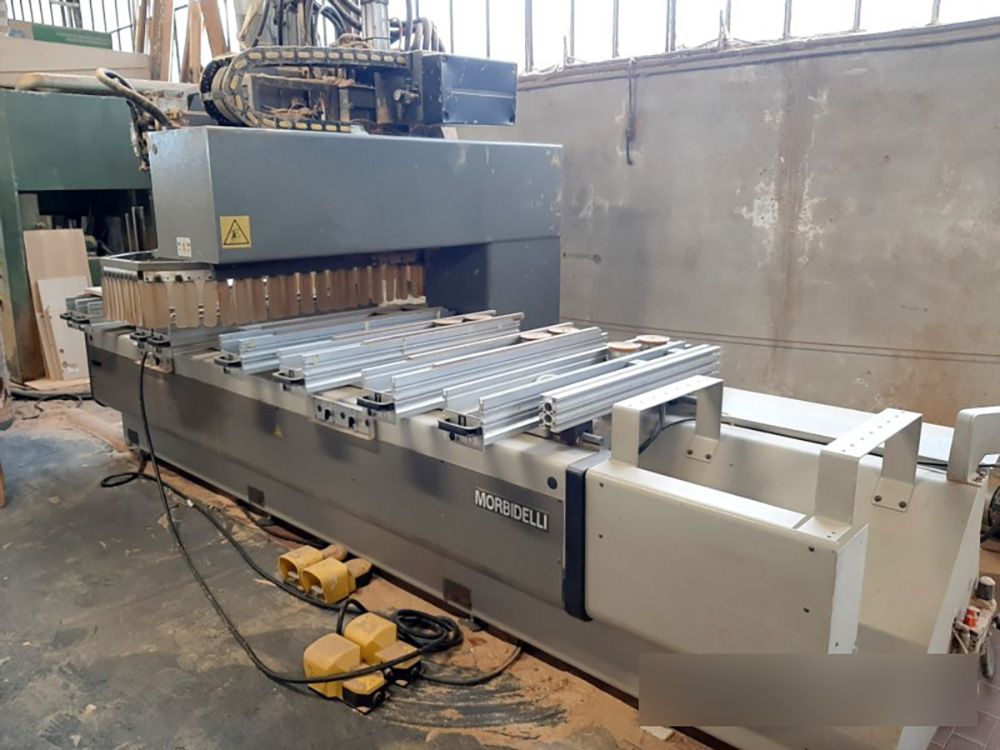

Morbidelli AUTHOR 600 K 3-axis

CNC working center with 3 controlled axis for furniture, custom furnishings,
carpentry, panels, kitchens, and various - CE Standard

Technical data:
X-axis working range 3085 mm
Y-axis working range 1385 mm
Z-axis working range 180 mm
Programmable X-axis speed 50 m/min
Programmable Y-axis speed 45 m/min
Programmable speed Z axis 22,5 m/min
Drilling unit: 10 vertical spindles (6 in X direction - 5 in Y direction) - 2 horizontal spindles X axis - 2 horizontal spindles Y axis - Motor power 2,2 Kw - 4000 rpm
Router unit: electric spindle 10 Hp - 18000 rpm - 10-spindle tool changer
Engraving blade unit - motor 2,2 kW - - 6000 rpm
Work surface: 6 work surfaces with 18 suction cups - 4 loading aids
Vacuum pump 100 m³/h
Automatic lubrication
Xylog numerical control
Installed power 17/20 Kw
Compressed air 6/7 bar
Weight 3000 kg
