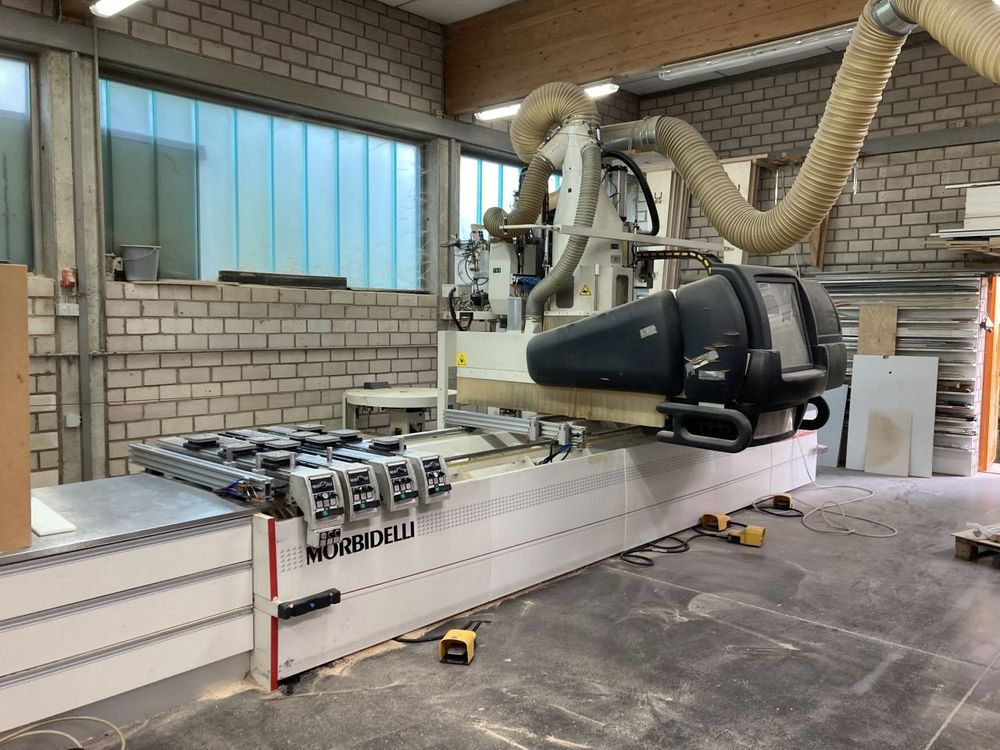

Morbidelli Author X5

CNC machining center
Technical data:
- Machining area with 1 workpiece: 4400x1300 mm
- Programmable speed in the “X” axis: 40 m/min
- Programmable speed in the “Y” axis: 45 m/min
- Programmable speed in the “Z” axis: 22.5 m/min
- Vector speed: 6 m/min

- Automatic central lubrication via CNC control
- 6-station tool changer
- Rear tool magazine HSK 63 with 24 positions
- Chip conveyor belt
- 8 supports TV system L=1300 mm (without suction cups)
- 24 x TV vacuum suction cups X=145 / Y=145, H=50 mm
- 8 x TV vacuum suction cups X=145 / Y=55, H=50 mm
- 8 x positioning aids TV table Morbidelli
- Suction cup positioning by laser
- 2 x additional side middle stops
- 2 pcs. additional side stops
- Vacuum pump 250 CBM/H
- Second inverter
- Reinforced inverter
- Drill head speed adjustable via machine inverter
- CNC control with PC Office
- Drilling unit with 30 spindles and 4+2 horizontal spindles
- Vertical milling unit 15 HP HSK63 1500/18000 manual
- Vector axis
- Electric spindle 15 kW
- X-axis drive with rack and pinion
- Front stop row at 1170 mm, each stop individually selectable
- Deeper extraction nozzles H=3000 mm
