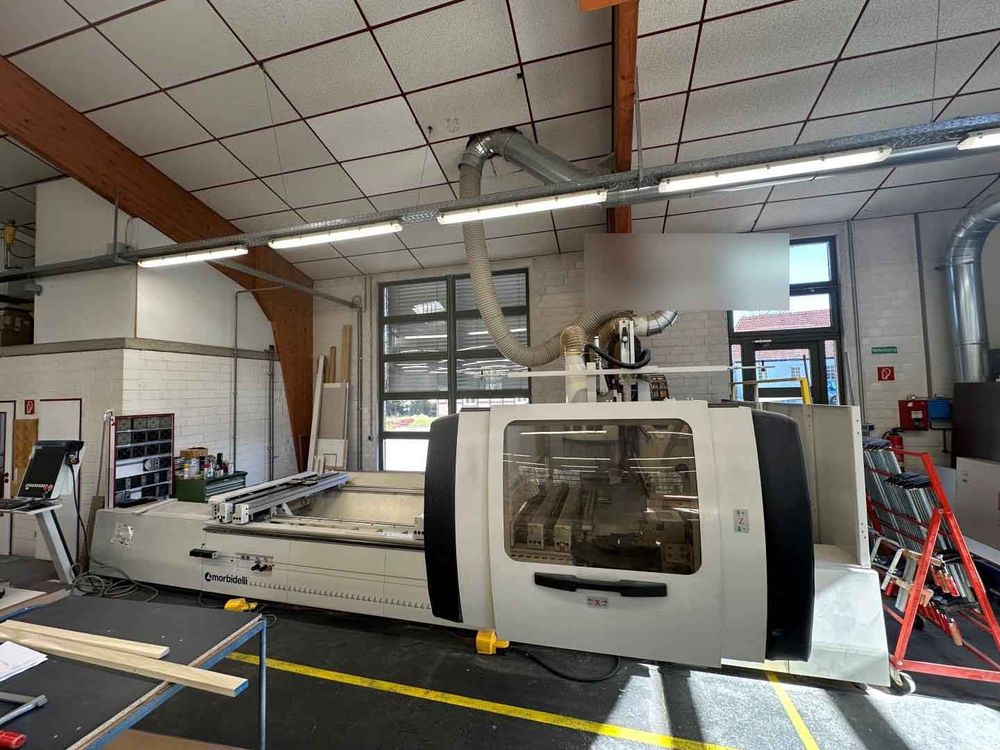

Morbidelli UNIVERSAL X5 HDL 36 5-axis

CNC Machining Centers
Equipment:
- 5-axis HSK-63 PRISMA milling unit with 11 kW motor power (1,200-20,000 rpm), liquid-cooled
- Drilling unit with 18 vertical spindles
(10 in X-direction, 8 in Y-direction),
4 horizontal spindles each in X- and Y-direction, and a grooving saw, max. Ø 120 mm in X-direction
- 12-station mobile tool changer
- 12-station side-mounted tool magazine (max. tool weight per tool 4 kg, total 25 kg, max. tool Ø 300 mm)
- Safety device with bumper
- Console table (width 3,548 mm) with 8 consoles (console length 1,560 mm)
- Positioning aid for TV Morbidelli tables
- Laser device for machining Suction cup position
- Vacuum pump 250 m³/h
- PC with Windows operating system
- Chip conveyor belt
- Automatic central lubrication

Technical specifications:
- Speed (X/Y/Z axis) 45 / 60 / 15 m/min
- Z-axis travel 400 mm
- X/Y-axis travel: 4,234 / 1,914 mm
- Working area in Y axis
Horizontal drilling 1,505 mm
Horizontal milling, front/back 1,600/95 mm
- Clearance height 180 mm
- Max. workpiece width 1,600 mm
- Central extraction nozzle, Ø 200 mm
- Power supply: 400V, 50 Hz, 63A (3~+N)
- Weight approx. 4,200 kg
