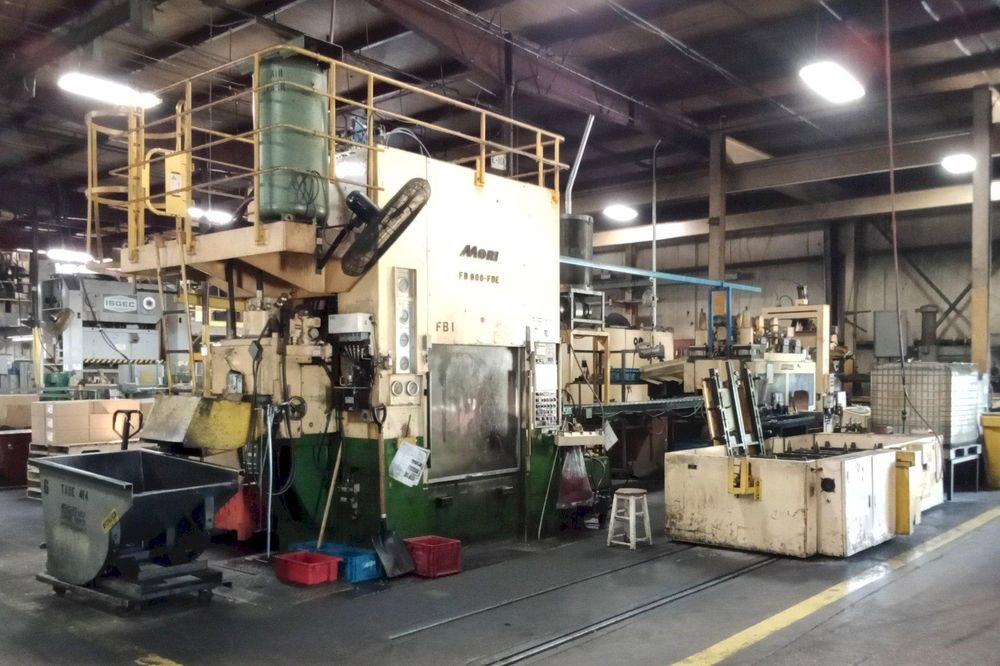

Mori FB 800 FDE 800 Ton

MORI Hydraulic Fine Blanking Press
Bolster 1100 x 1200 mm (L-R / F-B)
SPM Min Cutting 3 mm/sec
SPM Min Approach 10 mm/sec
SPM Min Return 10 mm/sec
SPM Max Cutting 40 mm/sec
SPM Max Approach 180 mm/sec
SPM Max Return 180 mm/sec
Feed Direction Right to Left
Target Pass Line 1200 mm

Decoiler Manufacturer SONORUKA
Decoiler Model UC-1545VM
Decoiler Max Coil Weight 5 tons
Decoiler Max Outside Diameter 1500 mm
Decoiler Min Coil Outside Diameter 610 mm

Feeder Manufacturer SONORUKA
Feeder Model LF-18045V
Feeder Min Thickness 0.5 mm
Feeder Max Thickness 16 mm
Feeder Max Width 450 mm
