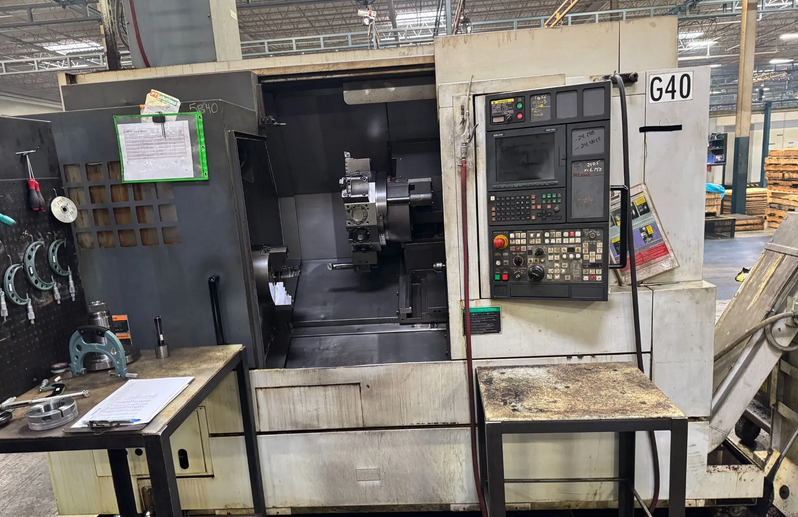

Mori Seiki CNC CONTROL 4000 RPM NL2500/700 2 Axis

X-axis travel 10.2"
Z-axis travel 31.2"
Rapid traverse X-axis 1181 IPM
Rapid traverse Z-axis 1181 IPM
Bar capacity 2.87"
Swing 36.37"
Turning diameter 14.01"
Machining length 27.75"
Maximum turning diameter 14.4"
Maximum turning length 27.7"
Maximum bar capacity 3.1"
Swing over bed 23.2"
Distance between centers 31.5"
Spindle nose A2-8
Spindle bore 3.5"
Spindle speed 4000 RPM
Spindle motor 25 HP
Power 26 HP
Chuck size 10.0"
Turret capacity 12 stations
Turret index time 0.5 sec
Tailstock body travel 28.8"
Tailstock quill diameter 3.34"
Tailstock quill stroke 3.1"
Tailstock taper MT-4
Power requirement 36 kVA
Overall dimensions 156.7" x 82.9" x 86.6"
Approximate weight 12786 lbs

Features / Equipment
BMT-type milling turret
Control panel ERGOline X CELOS X
