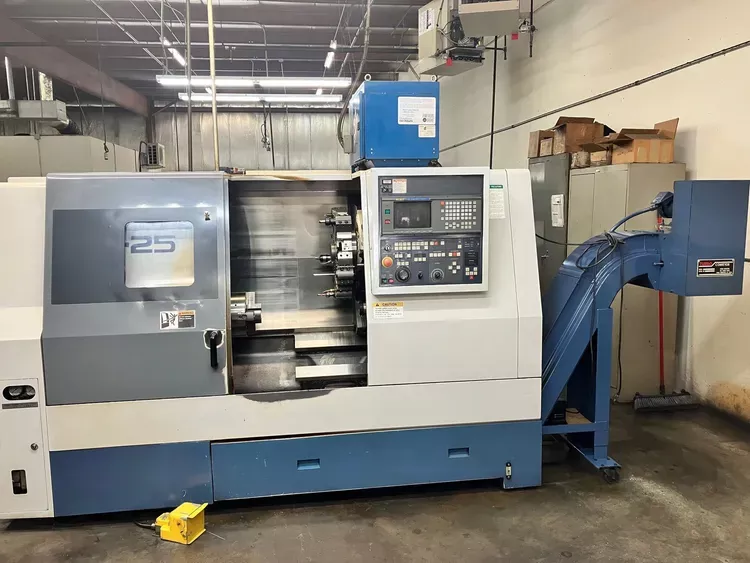

Mori Seiki CNC (Fanuc 18T CNC Color Control) 3,500 RPM SL25B500 2 Axis

MORI SEIKI SL25B500
1994

Swing over bed 20.5"
Machining length 20.5"
Distance between centers 24"
Chuck size 1: 10"
Spindle nose 1: A2-6
Spindle bar capacity 1: 2.5"

Turning diameter, shaft diameter 14.96"
Spindle speeds 1: 3,500 RPM
Spindle horsepower 1: 20 HP
Spindle bore diameter 1: 3.1"

Rapid traverse rate - X1: 472 in/min
Rapid traverse rate - Z1: 590 in/min
Turret configuration 1: 10

Tailstock quill diameter: 3.3"
Tailstock taper: 3
Tailstock quill travel: 3.1"

Programmable tailstock: Yes
Tailstock travel: 22"
Number of axis: 2
Tailstock: Yes
Live tooling: No
Sub spindle: No
Control: CNC (Fanuc 18T CNC Color Control)
Weight: 9240 lbs

10" 3-jaw hydraulic chuck
Tool setter
Tailstock
All available tooling
All available manuals
Chip conveyor
