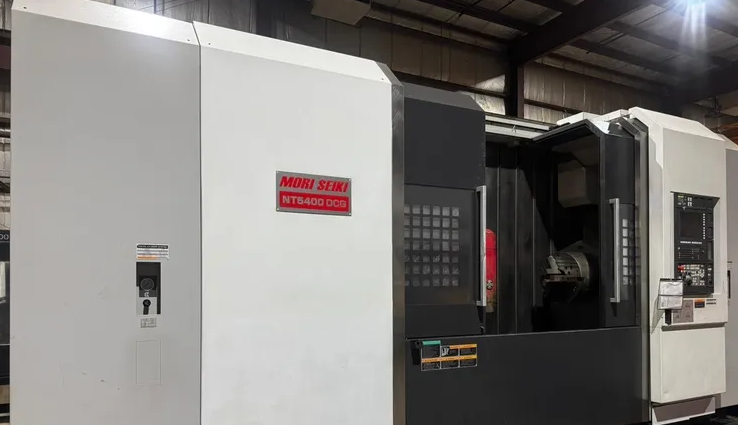

Mori Seiki Control MXS-711 III CNC control 2400 rpm NT-5400 DCG-1800SZ 5 Axis

X axis travel 40.9"
Y axis travel 10"
Z axis travel 76.4"
C axis 0.001°
Control MXS-711 III CNC control
Simultaneous 5-axis machining
Tool center point control
Programmable data input provided
Part program storage 2 MB
User memory area (built-in MAPPS) 50 MB
Number of stored programs 1000
Number of tool offset pairs 240
Tool offset for 5-axis machining provided
Number of work coordinate system pairs 6
Number of custom macro common variables 600
AI contour control 2
Diameter/radius dynamic exchange provided
Tilted working plane command provided
Nano smoothing provided
Tool life management type B
Number of tool life management pairs max 120 × 8
Load monitor type B
Swing 36.2"
Machining length 75.6"
Maximum turning diameter 36.2"
Bar capacity 4"
Spindle bore 4.5"
Spindle nose A2-11
Spindle taper Capto C8
Spindle power 50 hp
Maximum spindle speed 2400 rpm
Live milling power 40 hp
Live milling maximum rpm 6000 rpm
Sub spindle power 50 hp
Sub spindle maximum rpm 2400 rpm
Sub spindle chuck 15"
ATC capacity 80
Number of axes 5
Turret stations 10
Live tooling yes
Dual 15" power chucks
Capto C8 tooling
1000 PSI Chip Blaster high pressure coolant
Cooljet coolant pump
Tool pre-setter
Chip conveyors
