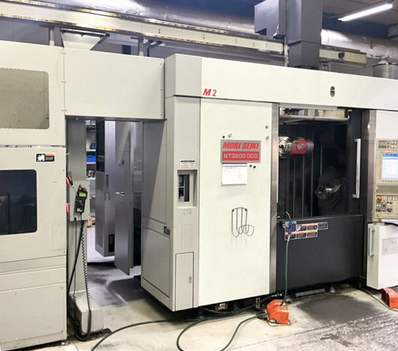

Mori Seiki FANUC FS-31iA5 (MAPPS 4) 12000 rpm NT 3200DCG /1000SZ 4 Axis

X-axis travel: 685 mm
Y-axis travel: 125 mm
Z-axis travel: 1075 mm
Control: FANUC FS-31iA5 (MAPPS 4)
Turning length: 1045 mm
Max turning diameter: 600 mm
Bar work capacity: 65 mm
B-axis: 120° full indexing
Turn-mill spindle speed: 12000 rpm
Turn-mill spindle drive power: 18.5/11 kW
Tool magazine capacity: 80
Tool holder: CAPTO C5
Tool length max: 250 mm
Tool diameter max: 70/130 mm
Tool weight max: 5 kg
Lower turret tool slots: 12
Driven tool power: 5.5/3.7 kW
Main spindle speed: 5000 rpm
Main spindle drive power: 25/22 kW (100%/40% ED)
Main spindle bore: 73 mm
Main spindle chuck: Hollow chuck (8″)
Counter spindle speed: 5000 rpm
Counter spindle drive power: 25/22 kW (100%/40% ED)
Counter spindle bore: 73 mm
Counter spindle chuck: Hollow chuck (8″)
Electronic handwheel
Chip conveyor
Swivel head
Signal lamp
High pressure pump
Mist collector
Work area light
CE conformity
Double chuck foot switch (main and counter spindle)
Coolant gun
Precision NC rotary table with direct measuring system
Oil skimmer
Linear scales
Gantry loader LG-10 AII
Renishaw MP700
Under power hours: 76,510
Spindle 1 hours: 11,521
Spindle 2 hours: 9,271
Nominal power: 102 kVA
Length: 8,000 mm
Width: 4,000 mm
Height: 3,000 mm
Weight: 15,000 kg
