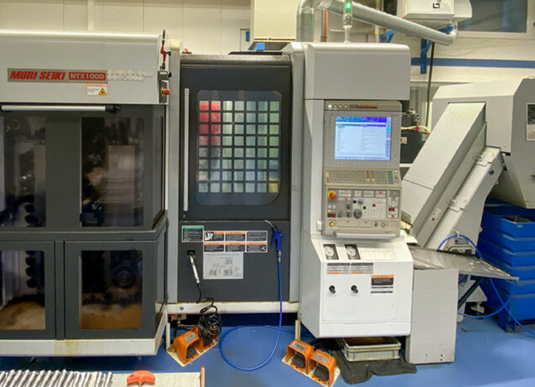

Mori Seiki Fanuc FS31IA5 (MAPPS 4) 6000 rpm NTX1000SZ 4 Axis

X axis travel 455 mm
Y axis travel ±105 mm
Z axis travel 800 mm
B axis rotation ±120° (0.001°)
CNC control Fanuc FS31IA5 (MAPPS 4)
Turning length 800 mm
Max turning diameter 430 mm

Main spindle speed 6000 rpm
Main spindle power 11/7.5 kW
Spindle bore 73 mm
Chuck type hollow chuck 8″
Chuck manufacturer KITAGAWA

Counter spindle speed 6000 rpm
Counter spindle power 7.5/5.5 kW
Chuck type solid chuck 8″
Chuck manufacturer KITAGAWA

Turn-mill spindle speed 12000 rpm
Turn-mill spindle power 9/5.5 kW

Tool magazine capacity 76
Tool holder Capto C5
Max tool length 250 mm
Max tool diameter 70/130 mm
Max tool weight 5 kg

Lower turret X axis travel 160 mm
Lower turret Z axis travel 730 mm
Lower turret tool slots 10

Chip conveyor
Signal lamp
High pressure pump
Double foot switch for main and counter spindle
Coolant gun

Operating hours 76482
Spindle 1 hours 14010
Spindle 2 hours 4306
Rated power 48 kVA

Machine length 2500 mm
Machine width 2495 mm
Machine height 8.5 m
