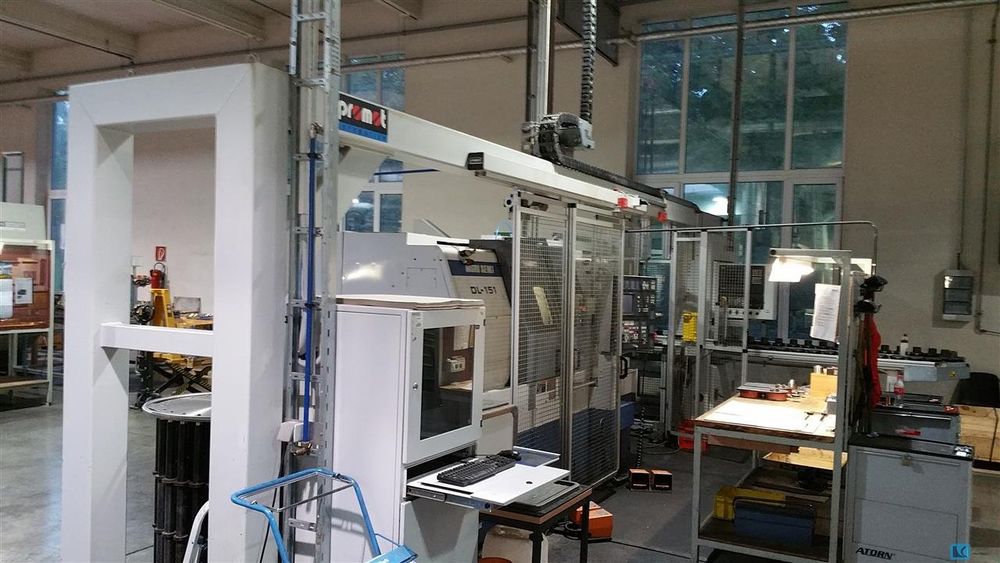

Mori Seiki Fanuc MSC 501 5000 rpm DL 151 MC 3 Axis

X-axis travel: 200 mm
Turning length: 200 mm

C-axis resolution: 0.001°
CNC control: Fanuc MSC 501
Total axes: 6
Twin spindle configuration
Twin turret configuration
Live tooling
Gantry loader with 64-position workpiece magazine

Maximum turning diameter: 170 mm
Bar capacity: 46 mm

Main spindle speed SP1: 5000 rpm
Main spindle speed SP2: 5000 rpm
Spindle motor power left: 7.5 kW
Spindle motor power right: 5.5 kW

Milling spindle speed range: 30–3000 rpm
Milling spindle motor power: 2.3 kW

Turret 1 stations: 12
Turret 1 rotary stations: 12
Turret 2 stations: 12
Turret 2 rotary stations: 12

Chip conveyor
Rear chip discharge
High-pressure coolant system 5 bar
Multiple rotary toolholders

Total power requirement: 50 kVA
Machine dimensions: 3.1 x 1.9 x 1.8 m
Machine weight: approx. 5.8 t
