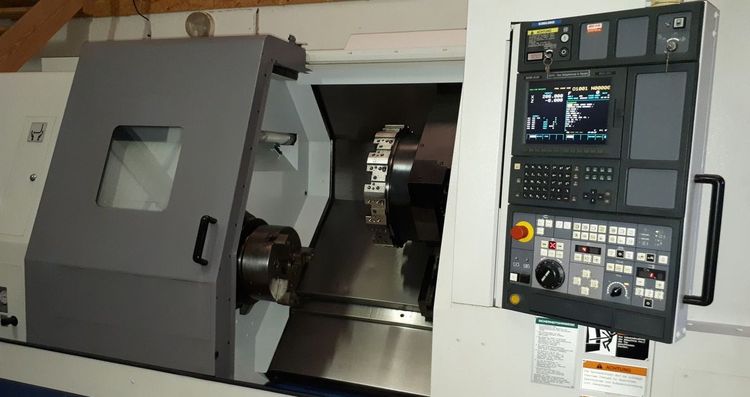

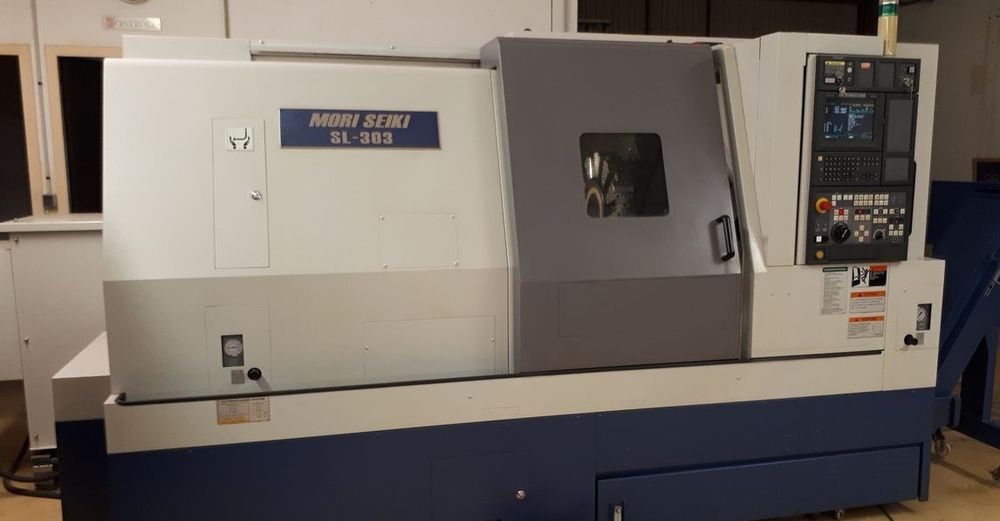

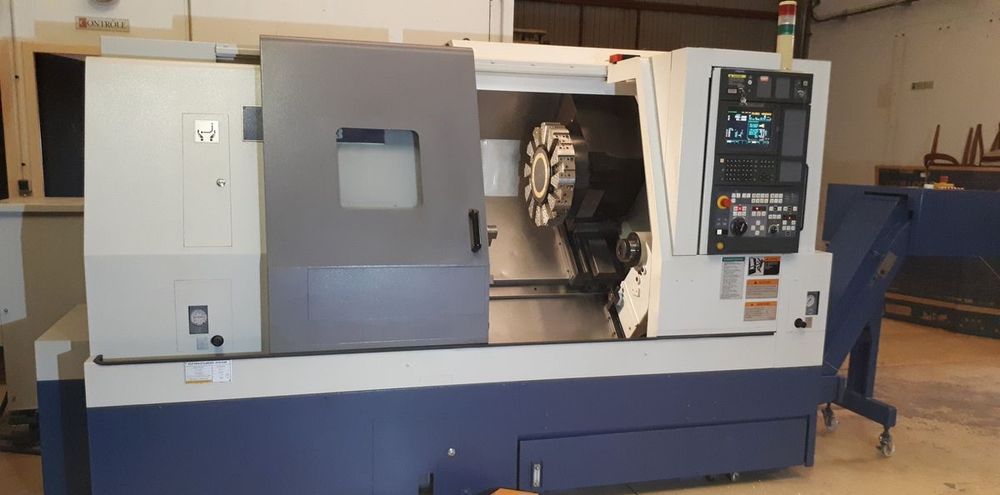

Mori Seiki FANUC MSG 501 + MAPPS 2500 rpm SL303B700 Lathe 2 Axis
EUROPE (Western and Northern)

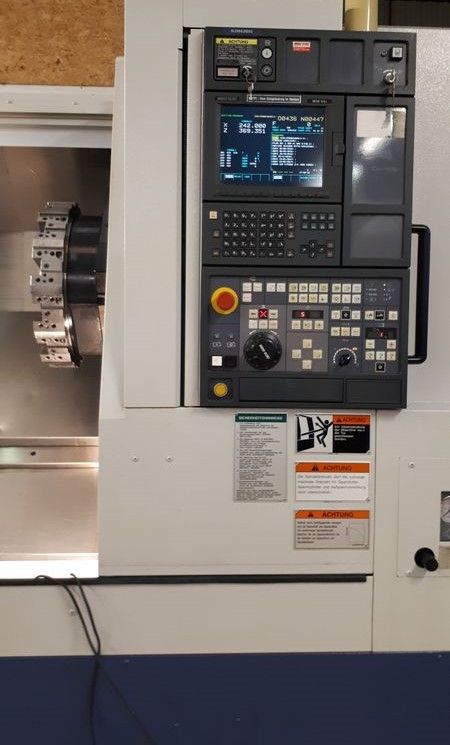

Control: FANUC MSG 501 + MAPPS
Working Time: 7,475 hrs
Maximum Machining Capacity / X: 420 mm, Z: 709 mm, Bar 89 mm
Travel / X Axis: 250 mm, Z Axis: 800 mm
Spindle: Speed 25 - 2500 rpm, JIS A2 Nose, Bore 105 mm

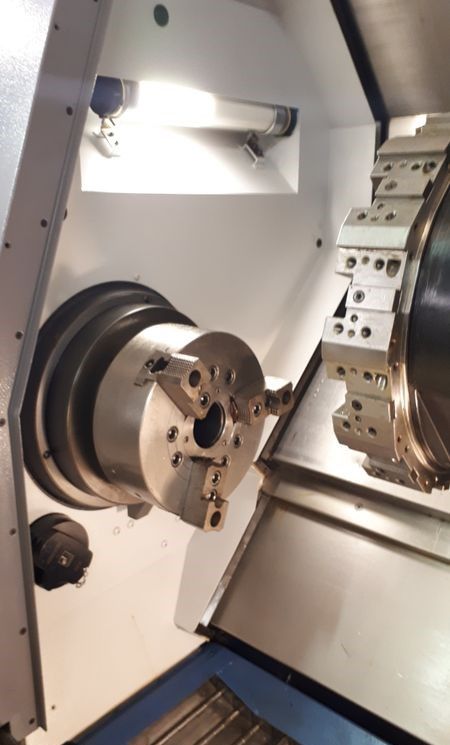

KITAGAWA B 212 Chuck, 300 mm

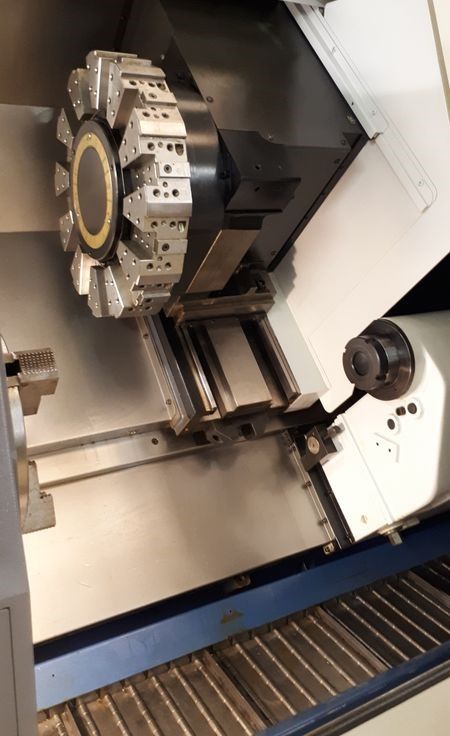

12-Station Turret, Tools 25 mm squares, Boring bar max. diameter: 50 mm, Index time: 0.2 s
Tool measuring arm: RENISHAW (removable)
Tailstock: Travel: 570 mm
Quadr diameter: 110 mm, Taper no. 5, Stroke: 105 mm
Main motor power: 30 / 22 kW
X-axis motor: 2.8 kW, Z-axis: 3.8 kW
Total electrical power: 50 kVA
Rapid feeds / X: 15 m/min, Z: 24 m/min
HP coolant 6 bar
Coolant tank capacity: 210 liters
Chip conveyor: yes
400 volt transformer, dimensions L: 1,250 mm, W: 560 mm, H: 1,060 mm
Machine dimensions: height: 2 050 mm, length: 3,402 mm, width: 1,915 mm
Weight: 6,750 kg
