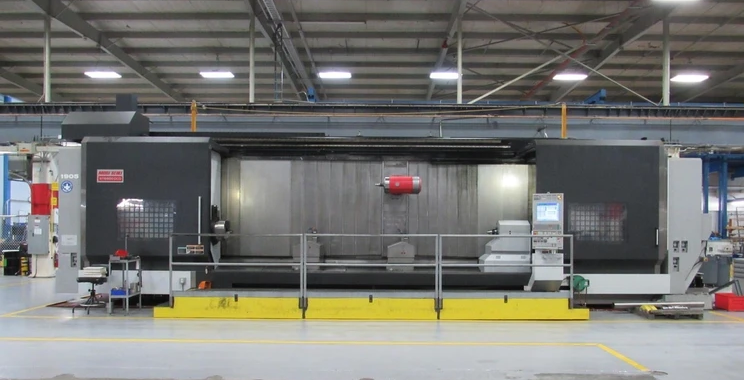

Mori Seiki FS-31iA5 CNC control 1500 rpm NT6600 DCG/6000B 3 Axis

C axis
Y axis
B axis
Live tooling/milling
20" chuck
140-position automatic tool changer
Programmable tailstock
Coolant through spindle (high pressure)
Chip conveyor
Automatic power shut-off
MAPPS 4 system
Part program storage 8 MB
Stored programs 1000
Remote communication function
ATA flash memory card
Programmable data input
AI contour control
Tool presetter
Automatic tool length measurement system
Capto C8 spindle
Full B-axis
Right hinge-type chip conveyor
Programmable automatic steady rest (1)
Programmable automatic steady rest (2)
Simultaneous 5-axis control
Tool center point control
Workpiece setting error compensation
Tool offset pairs 240
Tool offset for 5-axis machining
Work coordinate system pairs 6
Tilted working plane
Nano smoothing
Tool life management
Load monitor

X-axis travel 41"
Y-axis travel 26"
Z-axis travel 242"
B-axis ±120°
Maximum swing over bed 42"
Maximum workpiece diameter 42"
Maximum workpiece length 239"
Maximum bar diameter 6.4"
Spindle bore 7"
Main spindle speed 1500 rpm
Main spindle motor 40 hp
Milling spindle speed 8000 rpm
Milling spindle motor 40 hp
Chuck size 20"
Overall dimensions 490" × 182" × 169"
Machine weight 120,560 lbs
