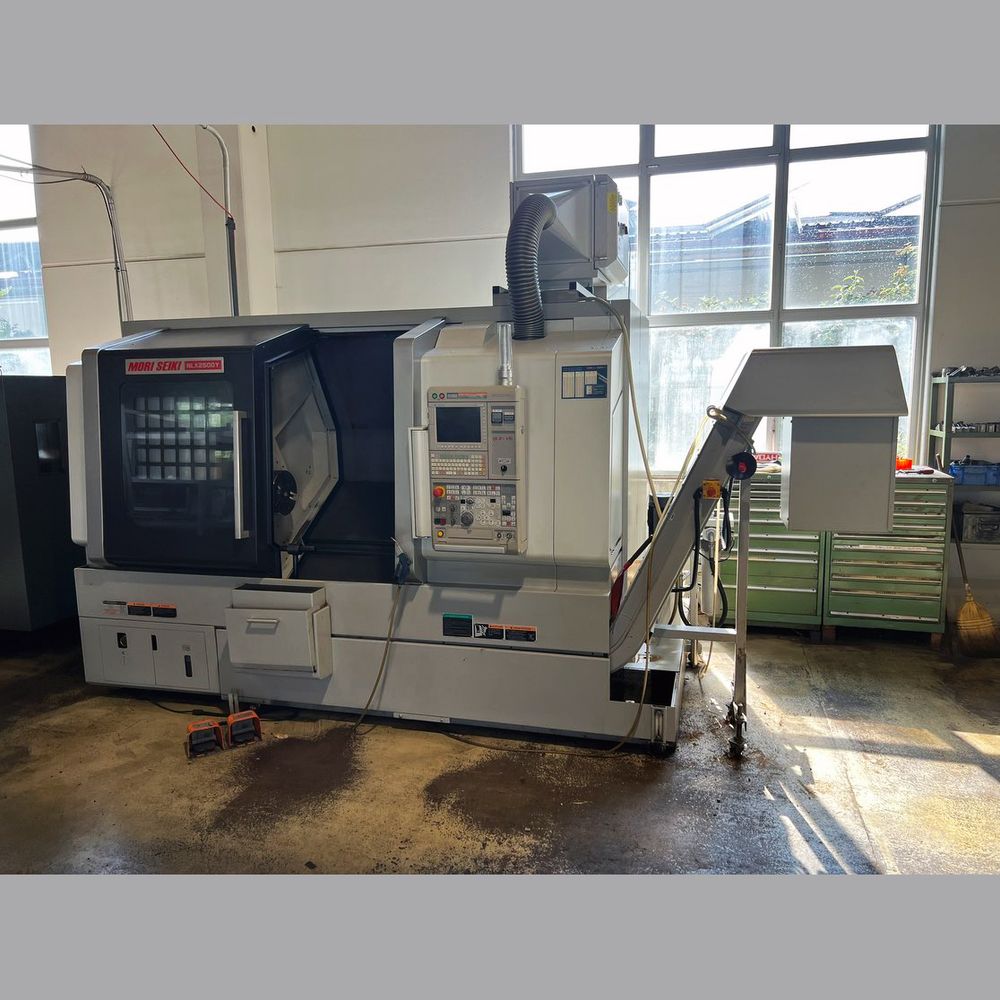

Mori Seiki Mori Seiki M730BM 4000 1/min NLX 2500 Y/700 4 Axis

X-axis travel: 260 mm
Y-axis travel: 100 mm
Z-axis travel: 795 mm
C-axis at main spindle unit

Max. turning diameter: 356 mm
Max. turning length: 705 mm
Max. swing diameter over bed: 920 mm
Max. swing diameter over cross slide: 742 mm
Max. spindle speed: 4000 1/min
Main spindle power: 18.5 kW at 10–40/100% duty ratio

Spindle bore: 91 mm
Spindle flange: JIS A-8
Number of turret stations/driven: 12/12
Tool drive speed: 10000 1/min
Max. rapid traverse X/Y/Z: 30/10/30 m/min
Control: Mori Seiki M730BM
Tool measurement via measuring arm
Fully enclosed work area
Work area lighting
Oil/emulsion mist extraction unit
Chip conveyor
Coolant unit
Part outfeed conveyor
Finish-part pick-up unit
Warning lamp
1 pc. 3-jaw clamping chuck
1 set tool holder for turning tools
1 set tool holder for driven tools
Total power requirement: 39 kVA
Machine dimensions LxWxH: 5000x3000x2300 mm
Machine weight: 6360 kg
