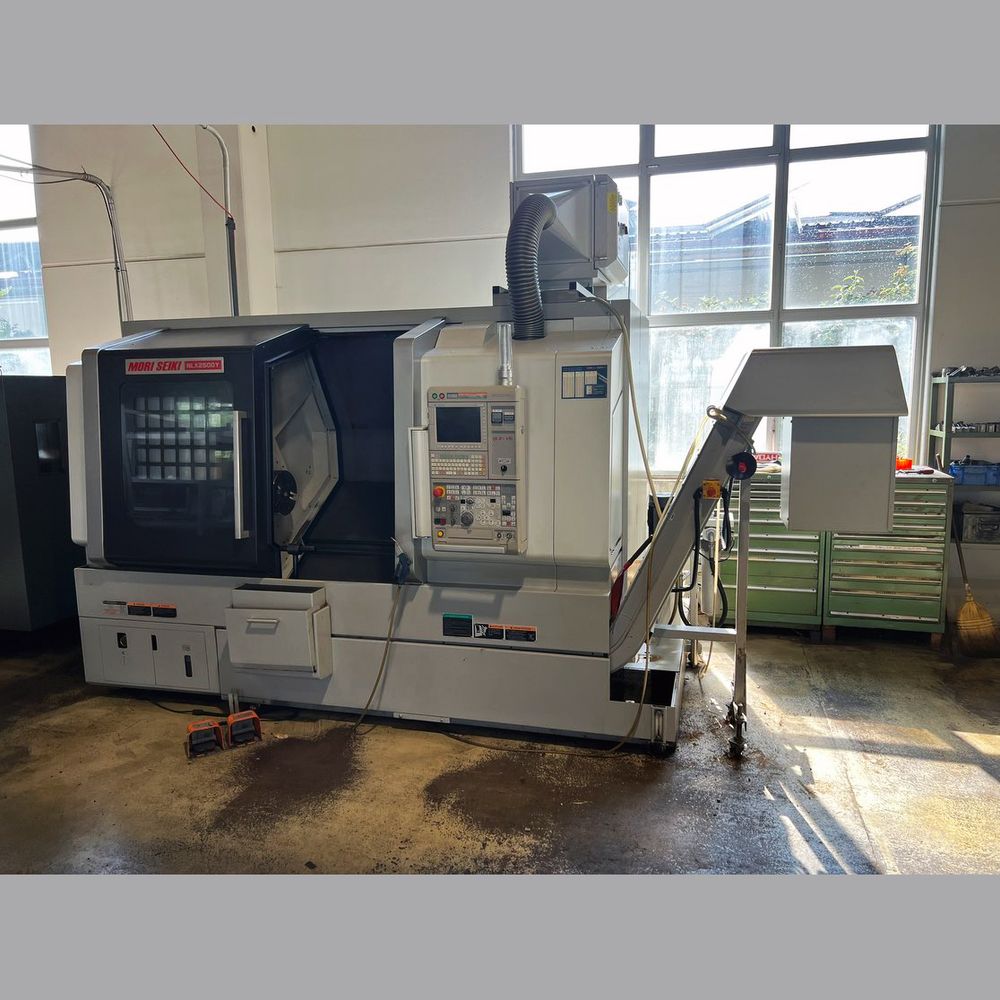

Mori Seiki Mori Seiki M730BM 4000 rpm NLX 2500 Y/700 4 Axis

X-axis travel 260 mm
Y-axis travel 100 mm
Z-axis travel 795 mm

Rapid traverse X-axis 30 m/min
Rapid traverse Y-axis 10 m/min
Rapid traverse Z-axis 30 m/min
C axis at main spindle unit

Control Mori Seiki M730BM
Tool measurement in measuring arm
Fully enclosed work area
Light in working area
Oil/emulsion mist extraction unit
Chip conveyor
Coolant unit

Part outfeed conveyor
Finish-part pick-up unit
Warning lamp
Max. turning diameter 356 mm
Max. turning length 705 mm

Swing diameter over bed 920 mm
Swing diameter over cross slide 742 mm
Spindle speed 4000 rpm
Spindle power 18.5 / 15 kW
Spindle bore 91 mm
Spindle flange JIS A-8

Hollow clamping cylinder
Tailstock
Turret stations 12
Driven tool stations 12
Tool drive speed 10000 rpm
3-jaw clamping chuck 1 pc

Tool holder for turning tools 1 set
Tool holder for driven tools 1 set
Total power requirement 39 kVA
Machine dimensions (LxWxH) 5000 x 3000 x 2300 mm
Machine weight approx. 6360 kg
1-shift machine usage
