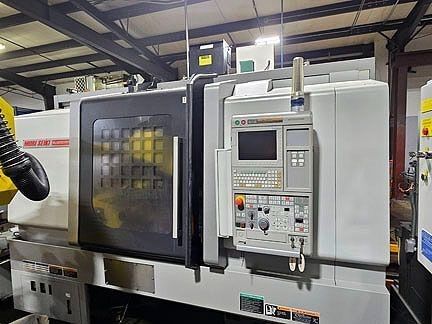

Mori Seiki Mori Seiki M730BM CNC 4000 RPM NLX2500SY/700 4 Axis

X-axis travel 10.24 in
Z-axis travel 31.30 in
Y-axis travel ±1.97 in

Distance between centers 28 in
Max turning length 31.30 in
Max turning diameter 18.11 in
Max swing over bed 23.23 in

C-axis Equipped
Y-axis Equipped
Control Mori Seiki M730BM CNC
Tool presetter Equipped
Bar capacity 3.15 in

Spindle bore 3.60 in
Spindle speed 4000 RPM
Spindle motor 25 HP
Spindle nose A2-8
Sub spindle Equipped

Second bar capacity 1.69 in
Second spindle bore 1.70 in
Second spindle speed 6000 RPM
Second spindle motor 15 HP
Second spindle nose A2-5

Live tooling Equipped
Live milling speed 6000 RPM
Turret type Bolt-on
Tool positions 12

Chuck size 10 in
Chuck type Hydraulic
Chuck description 3-jaw

Second chuck size 6 in
Second chuck description 3-jaw
Rapid traverse X/Z 1181 IPM
Rapid traverse Y 393.7 IPM
Chip conveyor Equipped

Machine dimensions 128 × 83 × 97 in
Machine weight 15000 lbs
Tool holders Equipped
All available manuals Included
