Mori Seiki Mori Seiki M730BM control 4000 rpm NLX-2500MC/700 2 Axis

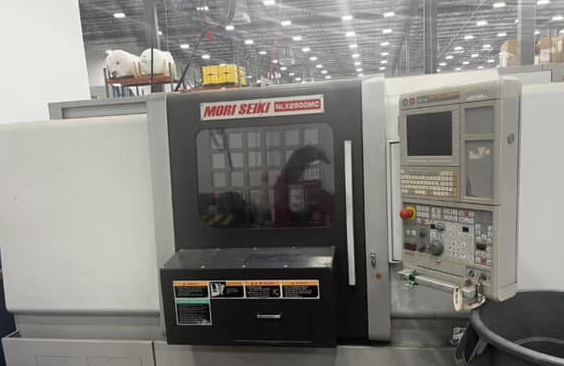

MORI SEIKI NLX-2500MC/700
2012

swing over bed 31"
interference with front cover 23"
swing over cross slide 21.3"
maximum turning diameter 14.4"
standard turning diameter 10.6"
maximum turning length 27.7"
bar work capacity 3.1"
X-axis travel 10.2"
Z-axis travel 31.3"
maximum spindle speed 4000 rpm
spindle motor 25/20 hp
spindle nose A2-8
through-spindle hole diameter 3.6"
number of tool stations 12
maximum rotary tool spindle speed 6000 rpm
rotary motor 7.5/5 hp
rapid traverse rate X/Z/B 1181 ipm
tailstock travel 28.9"
floor space 156" x 82" x 75"
weight 12,100 lbs

Mori Seiki M730BM control
automatic tool presetter
12-position turret
belt-type chip conveyor
parts catcher
fully programmable tailstock
10" 3-jaw hydraulic chuck
all available static, live toolholders, spindle liners, and accessories
