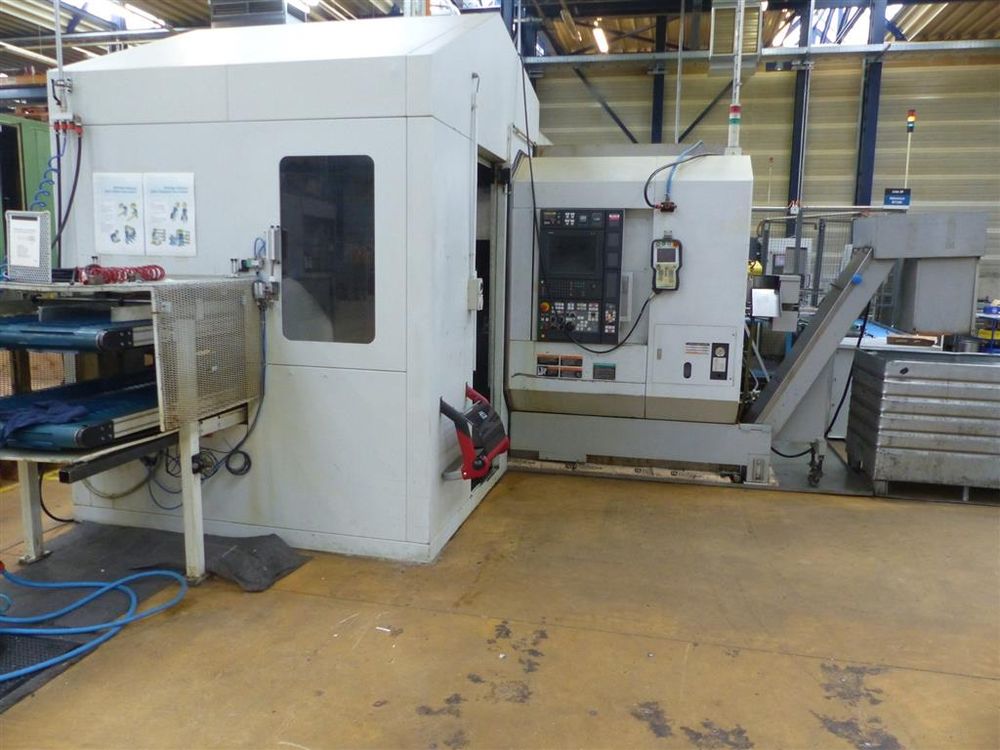

Mori Seiki MSX-701 MAPPS III 5000 rpm NZ 2000 T3Y2 & LEHMANN ROBOT 12 Axis

X-Axis Travel 1: 210 mm
X-Axis Travel 2: 210 mm
X-Axis Travel 3: 210 mm
Y-Axis Travel 1: 110 mm (+65 / -45)
Y-Axis Travel 2: 110 mm (+45 / -65)
Z-Axis Travel 1: 300 mm
Z-Axis Travel 2: 810 mm
Z-Axis Travel 3: 300 mm
B-Axis Travel: 870 mm
C-Axis Main Spindle: 0.001°
C-Axis Sub Spindle: 0.001°
Control: MSX-701 MAPPS III
Part Counter
Total Counter
Tool Setting System
Chip Conveyor
Coolant System
Overhead Parts Gripper with Conveyor Belt
Robot Interface
Lehmann Robot with Parts Feeding and Discharge Belt
Bar Capacity: 65 mm
Swing Over Bed: 800 mm
Distance Between Centres: 1130 mm
Turning Diameter: 320 mm
Standard Turning Diameter: 200 mm
Max Workpiece Diameter: 300 mm
Turning Length: 810 mm
Main Spindle Speed: 5000 rpm
Main Spindle Speed Ranges: 2
Main Spindle Nose: JIS A2-6
Main Spindle Bore: 73 mm
Main Spindle Bearing Diameter: 120 mm
Sub Spindle Speed: 5000 rpm
Sub Spindle Nose: JIS A2-6
Sub Spindle Bore: 73 mm
Sub Spindle Bar Capacity: 65 / 52 mm
Sub Spindle Bearing Diameter: 120 mm
Turrets: 3
Tool Stations: 48 (16 x 3)
Driven Tool Positions: 48 (16 x 3)
Square Tool Size: 20 mm
Boring Bar Capacity: 32 mm
Turret Index Time (4 Stations): 0.18 sec
Driven Tool Speed: 6000 rpm
Rotary Tool Capacity: M16 / Ø16
Rapid Traverse X: 30 m/min
Rapid Traverse Y: 20 m/min
Rapid Traverse Z: 50 m/min
Main Spindle Motor Power: 25 / 22 kW
Driven Tool Power: 7.5 / 5.5 kW
Total Power Requirement: 92.7 kVA
Main Spindle Chuck: SMW KNCS-N 210 / 52 mm
Sub Spindle Collet Chuck: Hainbuch Spanntop Nova Kombi Axfix 65
Machine Weight: 9.4 t
Machine Dimensions: 4.0 x 2.8 x 2.4 m
