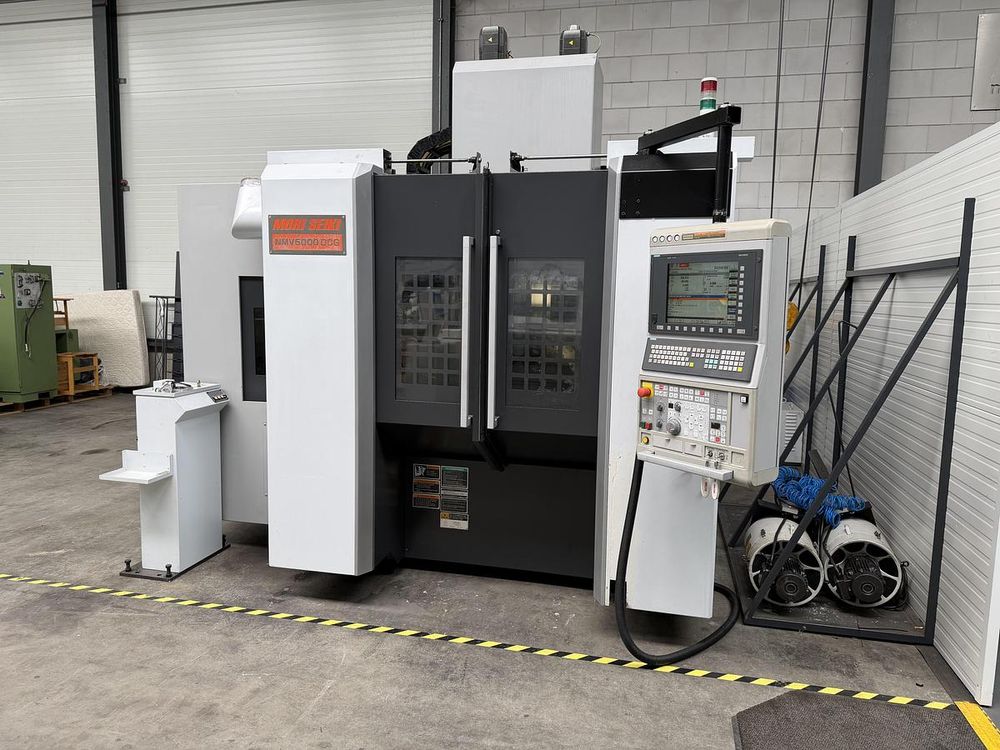

Mori Seiki NMV5000 DCG 5 Axis

Axis travel X: 730 mm
Axis travel Y: 510 mm
Axis travel Z: 510 mm
Axis travel B: -180° to +160°
Axis travel C: 360°
Rapid traverse X/Y: 50 m/min
Rapid traverse Z: 40 m/min
B axis
C axis
Control: Siemens 840D
Renishaw OMP60 3D probe
Spindle cooler
Table diameter: Ø500 mm
Maximum table load: 300 kg
Spindle speed: 0–12,000 rpm
Spindle motor: 18.5 kW
Spindle taper: HSK-A63
Table rotation speed (turning mode): 0–1200 rpm
Table rotation speed (table mode): 0–120 rpm
Tool magazine capacity: 181 tools
KNOLL FKA/500 belt filter system
3 filter rolls
Mist extraction unit
Chip conveyor
Original Mori Seiki tool setup stand
Original documentation
Electrical schematics
