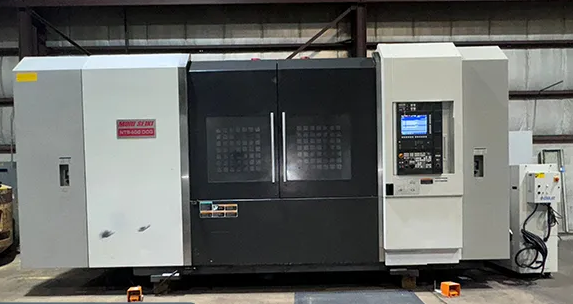

Mori Seiki NT5400 DCG/1800SZ 4 Axis

Milling Head Maximum Speed 8,000 RPM
Live Tooling Max Speed 6,000 RPM
Max Sub Spindle Speed 2,400 RPM
Max Main Spindle Speed 2,400 RPM
Sub Chuck Hole Thru 4"
Sub Spindle Bore 4.5"
Main Chuck Hole Thru 4"
Main Spindle Bore 4.5"
Main Chuck Diameter 18"
Sub Chuck Diameter 18"
Max Swing 36.2"
Swing over Cross Slide 36.2"
Maximum Machining Diameter 36.2"
Turret Capacity 10
ATC Capacity 80
MXS-711 III (Fanuc Control)
Full B-Axis 0.0001 deg indexing
Main Spindle with 18" Power Chucks
Sub Spindle with 18" chuck Capto C8 Tooling
Simultaneous 5-Axis Machining
1000 Psi Chip Blaster High-Pressure Coolant
Lower Turret with Live Milling
Cooljet Coolant Pump
Renishaw Tool Presetter
Tool Center Point Control Part Program Storage (2mbyte)
