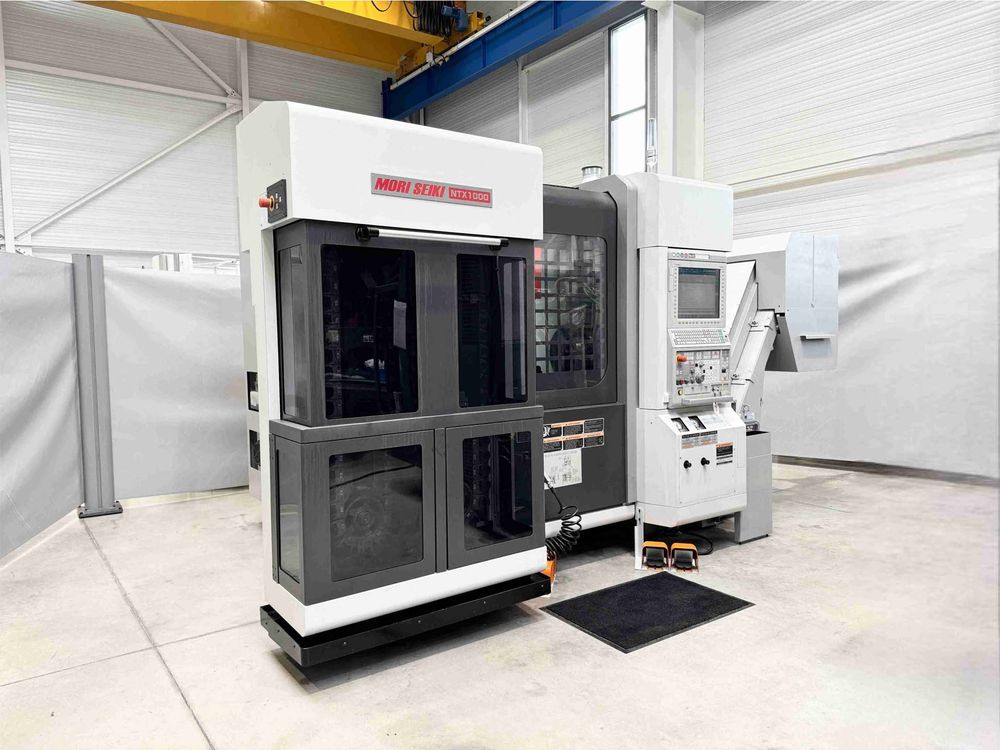

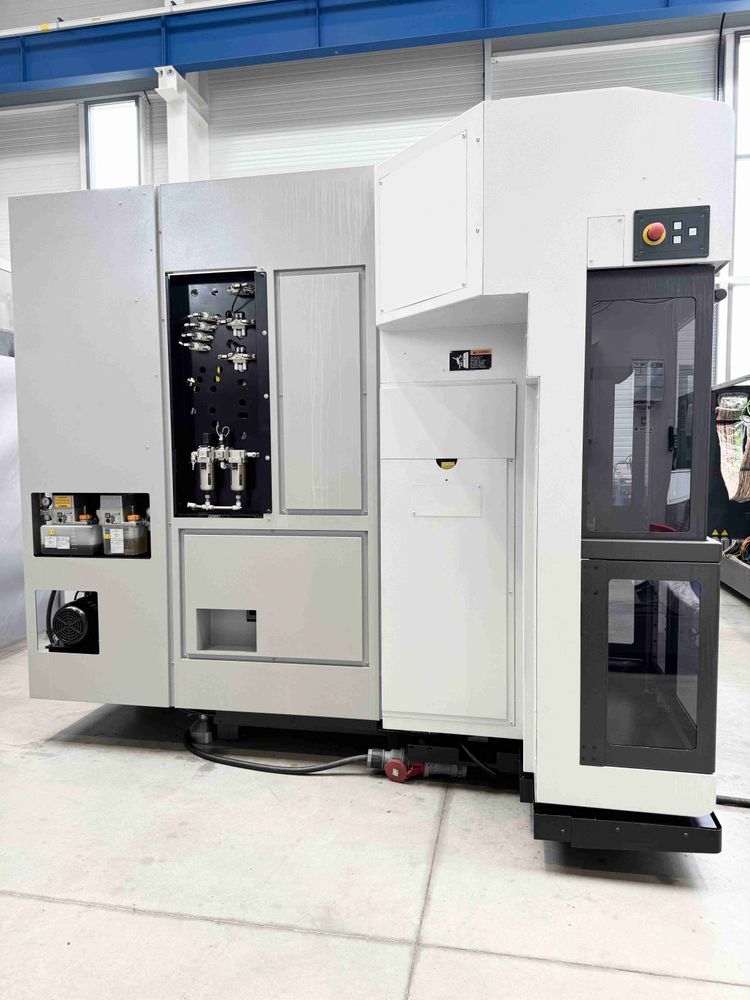

Mori Seiki NTX 1000 / SZ 5

Turn Mill Center MORI SEIKI NTX1000 SZ



TECHNICAL CHARACTERISTICS :

Year of manufacturing : 2011

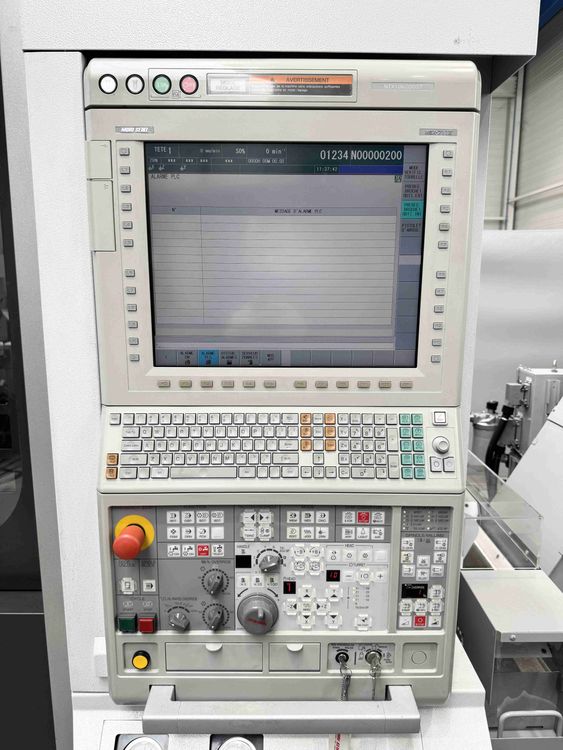

CNC control: FANUC MSX-711 IV
Number of simultaneous axes: 5
Max. cutting diameter: 370 [mm]
Max. turning length: 424 [mm]
Stroke Y axis : 105
Stroke Z1 axis : 460 [mm]
Stroke X1 axis : 380 [mm]
Stroke Z2 axis : 610 [mm]
Stroke X2 axis : 155 [mm]
B axis swivelling stroke : 120 [°]
B axis indexing precision : 0.0001 [°]

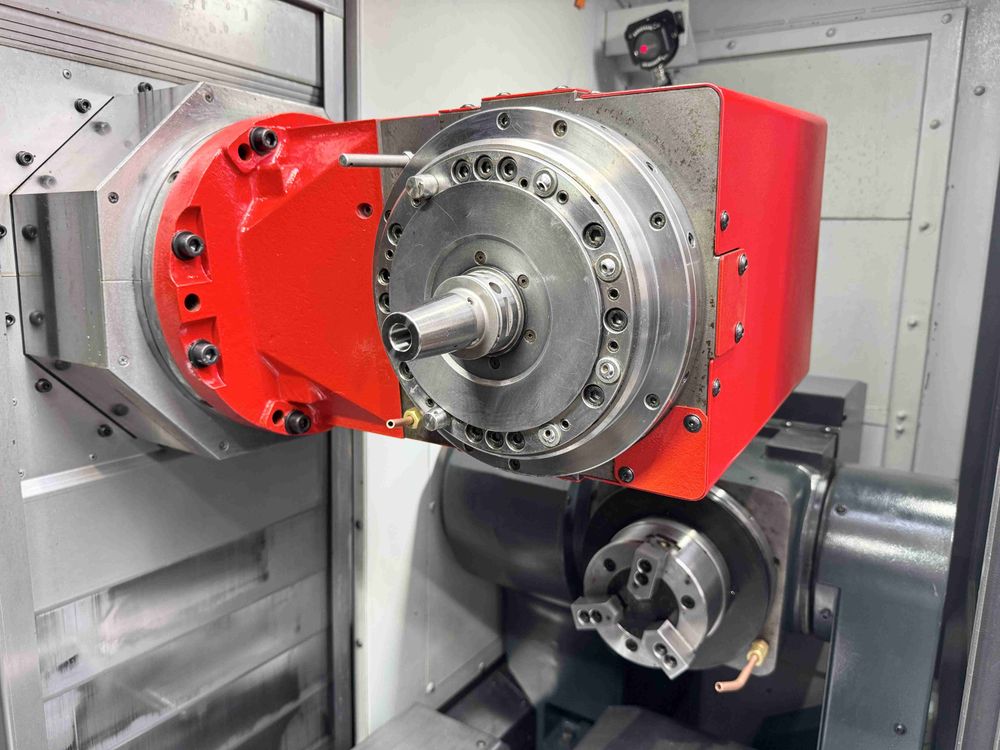

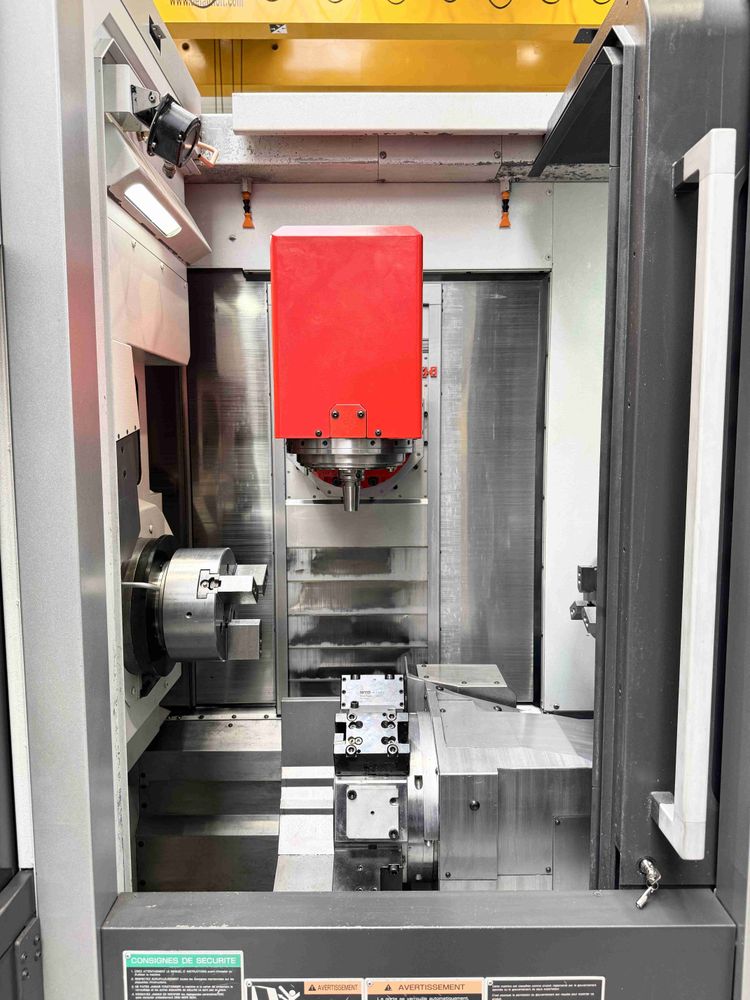

Milling head max. speed : 12000 [rpm]
Milling head spindle attachment : Capto C5
Max. milling spindle power : 9 [kW]
Tool magazine capacity : 76
Max. tool lenght : 250 [mm]
Max. tool diameter : 130 [mm]
Max. weight of single tool : 5 [Kg]
Rapid traverse rate X1 axis : 40000 [mm/min]
Rapid traverse rate X2 axis : 20000 [mm/min]
Rapid traverse rate Z axis : 50000 [mm/min]
Rapid traverse rate Z2 axis : 36000 [mm/min]
Rapid traverse rate Y axis : 40000 [mm/min]
Spindle nose : JIS A2-6
Spindle throughbore : 73 [mm]
Max. spindle speed : 6000 [rpm]
Increment C-axis : 0.0001 [°]
Spindle power : 11 [kW]
Counter spindle nose : G6 flat nose
Counter spindle throughbore : 38 [mm]
Max. counter spindle speed : 6000 [rpm]
Counter spindle increment C-axis : 0.0001 [°]
Counter spindle power : 7.5 [kW]
Counter spindle torque : 37 [Nm]
Max. tool holder cross-section : 20 [mm]
Number of tool stations : 10
Total power required : 48 [kVA]
Number of cutting hours : 9867 [h]
Weight : 8950 [Kg]


EQUIPMENT INCLUDED:

x1 MAPPS IV operating system
x1 RENISHAW tool probe
x1 RENISHAW part probe interface (laser sensor and software option installed)

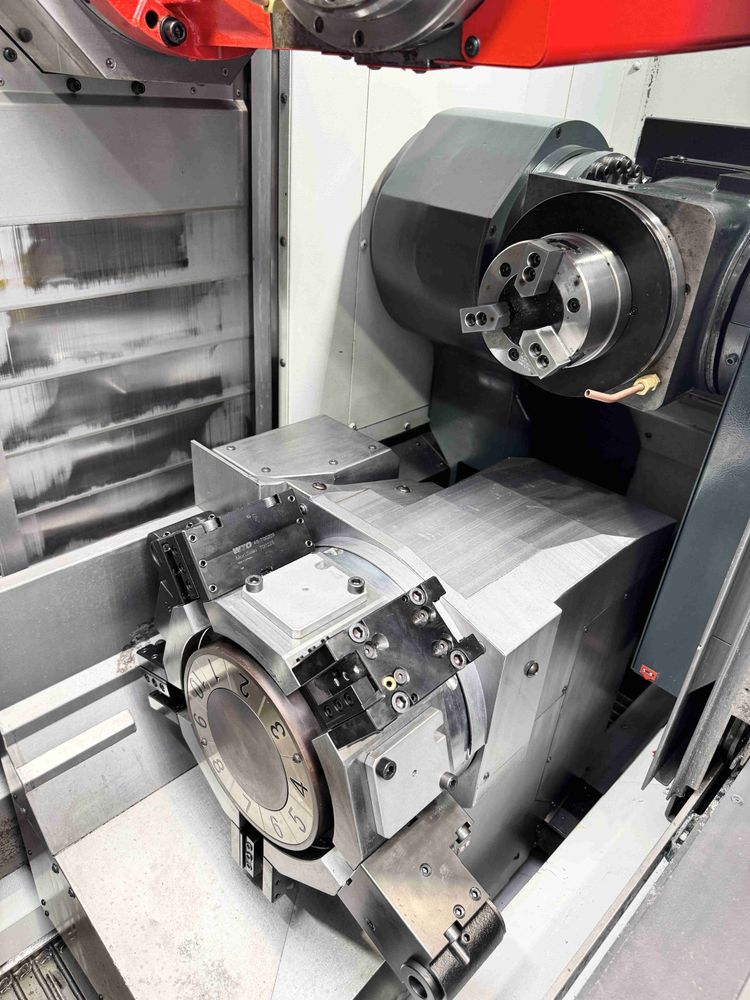

x1 KITAGAWA BB208 - Ø208 [mm] chuck
x1 blowing spindle chuck
x1 KITAGAWA N05 chuck - Ø135 [mm]
x1 blowing of counter-spindle chuck
x1 through tool spindle coolant

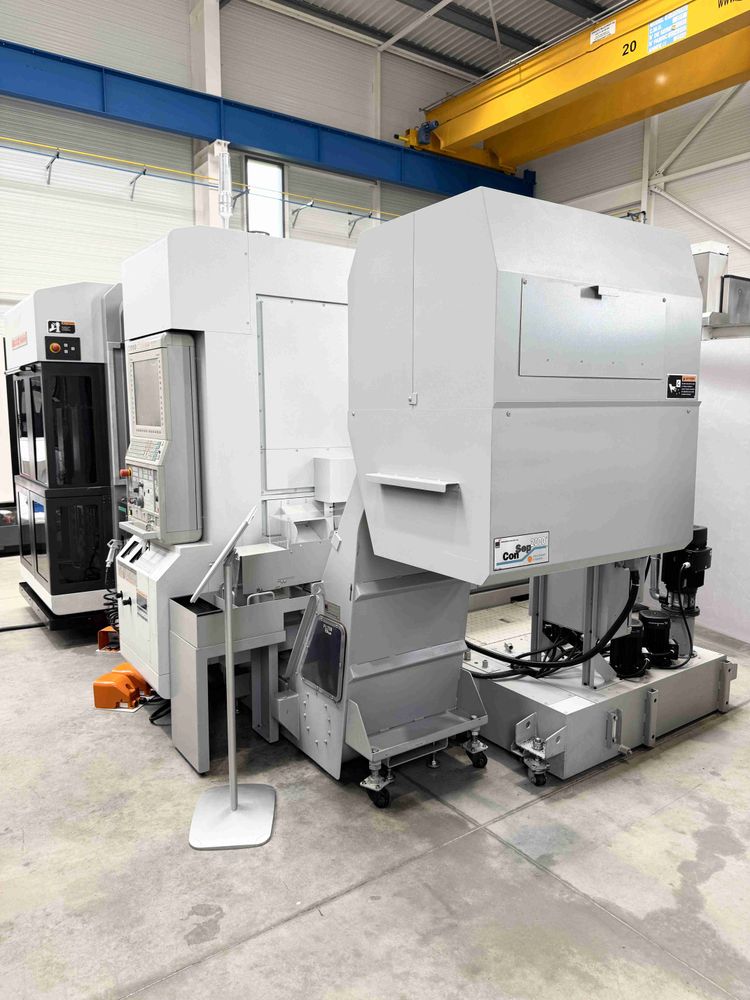

x1 chip conveyor (right exit)
x1 coolant gun
x4 foot pedals (clamping/unclamping chucks 1 and 2)
x6 static tool holders
x1 3-colours status lamp
x1 electrical transformer

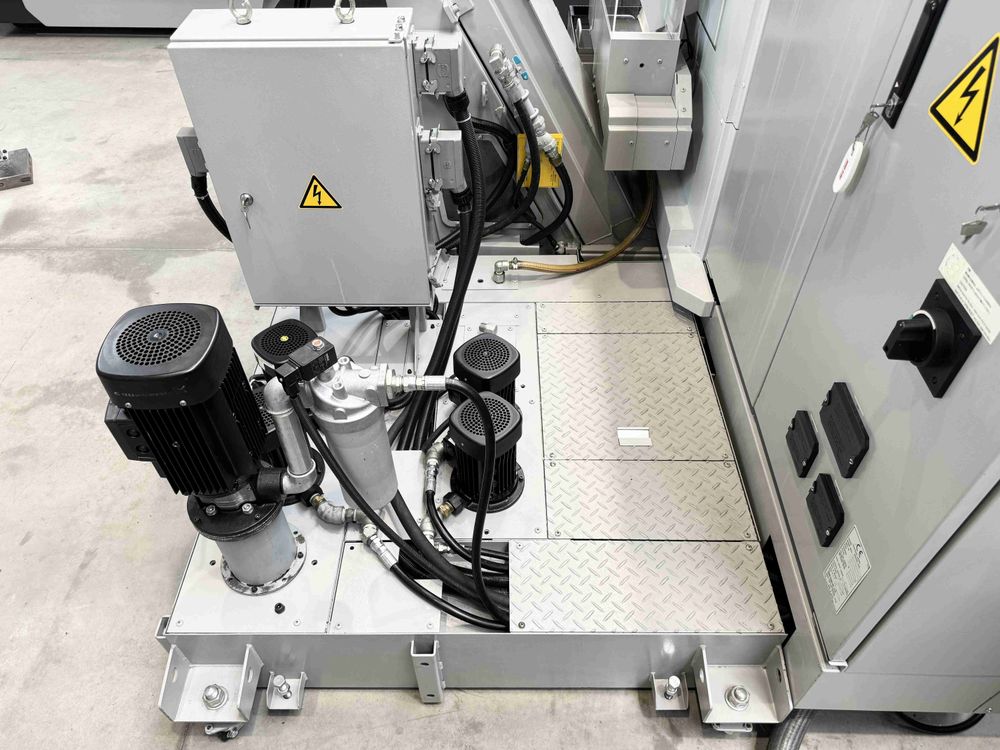

x1 high pressure collant pump
x1 set of axle clamps for transporting the machine
x1 set of technical manuals


FANUC OPTIONS INCLUDED :

x1 A02B-0306-J713 - 31i-A5 3-D Coordinate System Conversion
x1 A02B-0306-J815 - 31i-A5 Polar Coordinate Interpolation
x1 A02B-0306-J819 - 31i-A5 Helical Interpolation
x1 A02B-0306-J828 - 31i-A5 Rigid Tapping
x1 A02B-0306-J852 - 31i-A5 CS Contour Control
x1 A02B-0306-J926 - 31i-A5 Tool Offset, 99 Pairs
x1 A02B-0306-J930 - 31i-A5 Tool Radius (Cutter) Compensation and Tool Nose Radius Compensation
x1 A02B-0306-J947 - 31i-A5 Part Program Memory, 1 MB
x1 A02B-0306-R512 - 31i-A5 Nano Smoothing II
x1 A02B-0306-S676 - 31i-A5 Tilted Working Plane Command - Conventional
x1 A02B-0306-S687 - 31i-A5 Nano Smoothing
x1 A02B-0306-S737 - 31i-A5 Data Server Function
x1 A02B-0306-S808 - 31i-A5 AI Contour Control II



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
