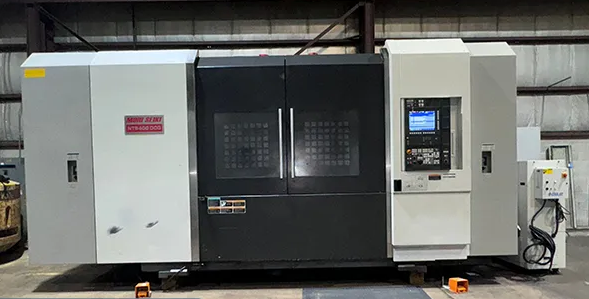

Mori Seiki NT5400 DGC/1800SZ 5 Axis

Control: Fanuc MXS-711 III CNC
Full B-axis 0.0001° indexing
Simultaneous 5-axis machining
Renishaw tool presetter
Tool center point control
Part program storage: 2 MB
Cooljet coolant pump
Chip Blaster 1000 PSI high-pressure coolant

Main spindle speed: 2,400 RPM
Main spindle bore: 4.5"
Main chuck hole thru: 4"
Main chuck diameter: 18"
Sub spindle speed: 2,400 RPM
Sub spindle bore: 4.5"
Sub chuck hole thru: 4"
Sub chuck diameter: 18"
Maximum machining diameter: 36.2"
Maximum swing: 36.2"
Swing over cross slide: 36.2"
ATC capacity: 80
Turret capacity: 10
Live tooling max speed: 6,000 RPM
Milling head max speed: 8,000 RPM

Lower turret with live milling
Capto C8 tooling
Two spindles
Simultaneous 5-axis control
