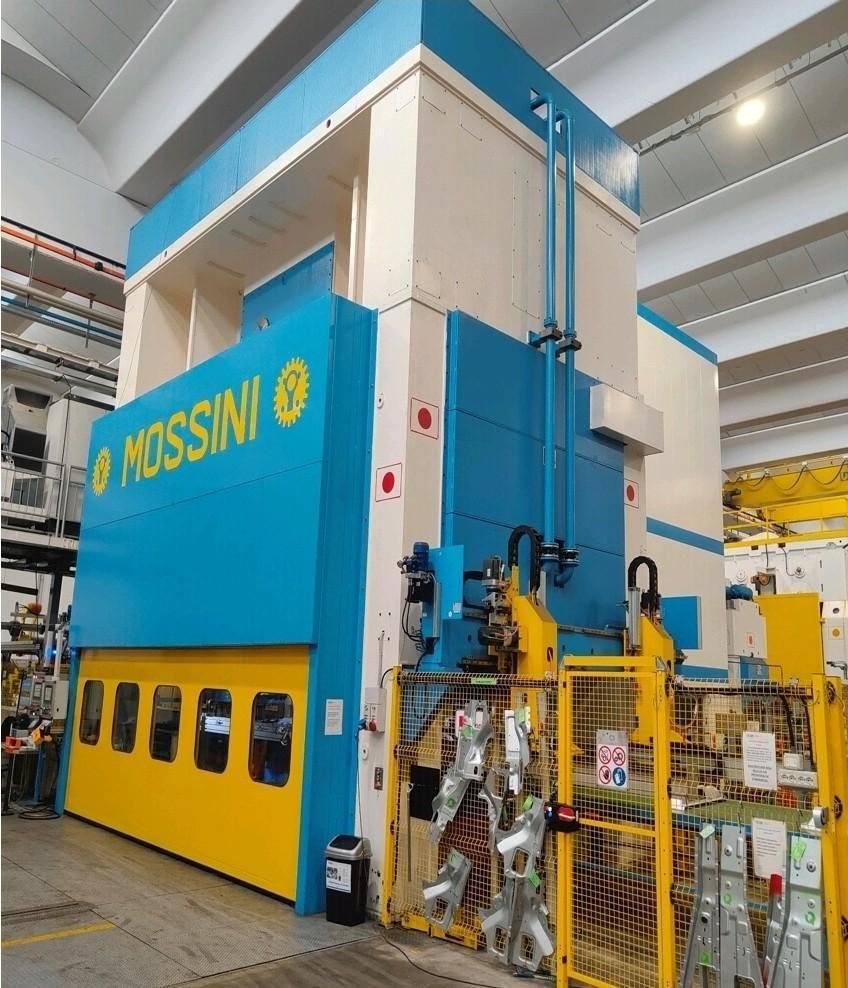

Mossini PDM/4B/LD/2000 2000 Ton

Press Force: 2000 Ton
Type: Straight Side, Double Crank (Single Action)
Kinematics: Link Drive
Number of Connecting Rods: 4
Slide Stroke: 900 mm
Slide Adjustment: 400 mm
Continuous Speed: 10 - 25 SPM
Shut Height from Top of Bolster: 1270 mm
Slide Dimensions (L-R x F-B): 6000 x 2500 mm
Side Moving Bolster Dimensions (L-R x F-B): 6000 x 2500 mm
Clearance Between Uprights (L-R): 6070 mm
Clearance Between Uprights (F-B): 3300 mm
Moving Bolster Height: 550 mm
Weight of Press: 600,000 kg
Equipped With: 3-Axis NORDA Transfer System
Equipped With: Sheet Feeding Line
Max Sheet Width: 1850 mm
Max Sheet Thickness: 4 mm
Coil Weight Capacity: 25,000 kg
