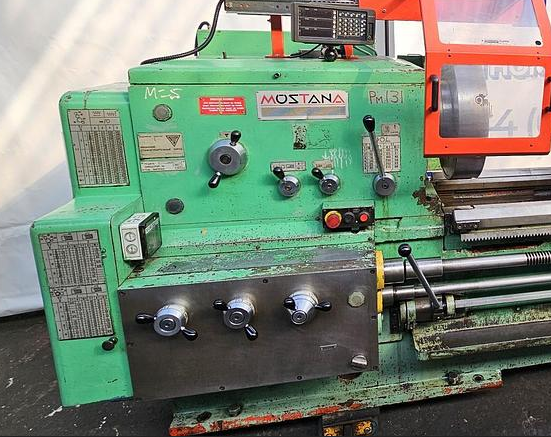

Mostana Gap Bed Centre Lathe 1250 rpm 1M63 x 3000 Gap Bed Centre Lathe
Ref :
2794603-3-MT
Condition :
Used
Manufacturer :
Mostana
Type :
Gap Bed Centre Lathe
Spindle Speed :
1250 rpm
Model :
1M63 x 3000 Gap Bed Centre Lathe
Year(s) :
1995
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Distance between centres: 3000 mm
Swing over bed: 700 mm
Swing over cross slide: 350 mm
Swing in gap: 900 mm
Longitudinal feeds per revolution: 0.005 – 1.4 mm/rev
Cross feeds: half longitudinal feeds
Threads per inch: 1/4 – 28 TPI
Inch pitches: 112 – 0.5
Metric pitches: 1 – 224
Module range: 0.25 – 56
Spindle speed range: 10 – 1250 rpm
Main motor power: 15 kW
Spindle bore: 105 mm
Cross slide travel: 400 mm
Leadscrew diameter: 45 mm
Leadscrew pitch: 12 mm
SONY LH70 2-axis DRO
Interlocked chuck guard
Taper turning through power compound slide
500 mm 4-jaw chuck
390 mm 3-point steady
Rapid power traverse
4-way toolpost
Change gears
Coolant system
