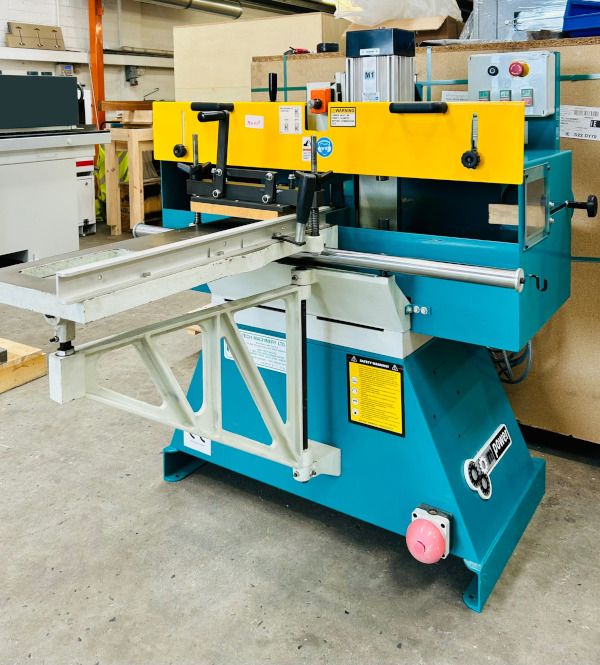

MPower Tennoner

Technical Specifications :
Motor 2.2Kw 3 phase
Timber capacity 130 x 310mm
Timber capacity with fence at 45 degrees 130 x 250mm
Max. length of tenon 155mm
Max. length of tenon 2 passes 205mm
Vertical adjustment of bottom cutter block 0 to 60mm
Vertical adjustment of top cutter block 0 to 120mm
Horizontal adjustment of top cutter block /-32mm
Table size 800 x 310mm
Table working height 860mm
Main Cutter heads 175 x 60 x 30mm

Scribing Head:
Motor 4.0Kw (5.5hp) 3 phase
Cutter block 150 x 60 x 30 ALU
Shaft diameter 30mm
Effective length of shaft 75mm
Vertical movement 95mm
Horizontal movement 30mm
Max. diameter of tooling 210mm
Vertical stroke 150mm
