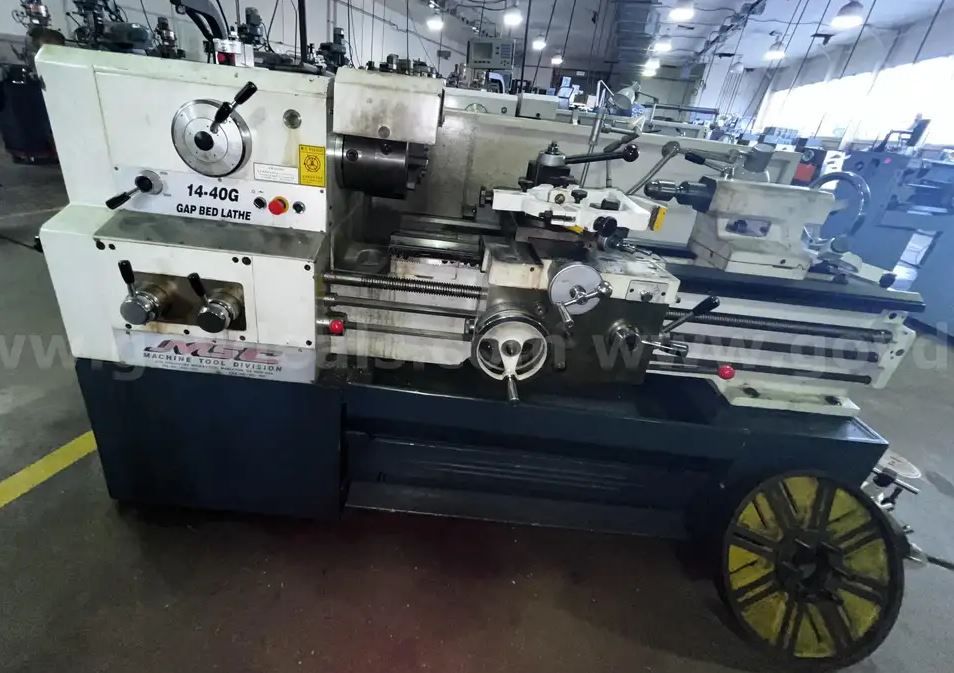

MSC Engine Lathe 1200 RPM MSC 14-40G Valuemaster

MSC 14-40G Valuemaster
NEW: 2000's

SWING OVER BEDWAYS ................... 14-1/2"
SWING IN REMOVEABLE GAP .............. 20-1/2"
SWING OVER CROSS SLIDE ............... 9-1/2"
HOLE THRU SPINDLE .................... 2-1/16"
DISTANCE BETWEEN CENTERS ............. 40"
SPINDLE NOSE ......................... D1-6" CAMLOCK
SPINDLE SPEED RANGE (16) ............. 22 - 1200 RPM
ENGLISH THREADING RANGE (35) ......... 1-3/4 - 80 TPI
METRIC THREADING RANGE (30) .......... .45 - 20 mm
LONGITUDINAL FEED RANGE .............. .00157" - .080" IPR
CROSS FEED RANGE ..................... .00075" - .040" IPR
TAILSTOCK SPINDLE TAPER .............. #4MT
TAILSTOCK SPINDLE TRAVEL ............. 5-1/2"
APPROX FLOOR SPACE ................... 90"L x 36"W x 48"H
APPROX WEIGHT ........................ 3,250 LBS

EQUIPPED WITH:
INCH & METRIC THREADING CAPABILITY
ACU-RITE TWO AXIS DIGITAL READOUT
TAPER TURNING ATTACHMENT
3-JAW CHUCK
4-JAW CHUCK
STEADY REST
FOLLOW REST
QUICK CHANGE TOOLPOST
FACEPLATE
THREAD DIAL INDICATOR
FOOT BRAKE
COOLANT SYSTEM
HARDENED BED WAYS
7.5 HORSE POWER MAIN MOTOR
MACHINE IS WIRED FOR 220 VOLT 3 PHASE OPERATION
