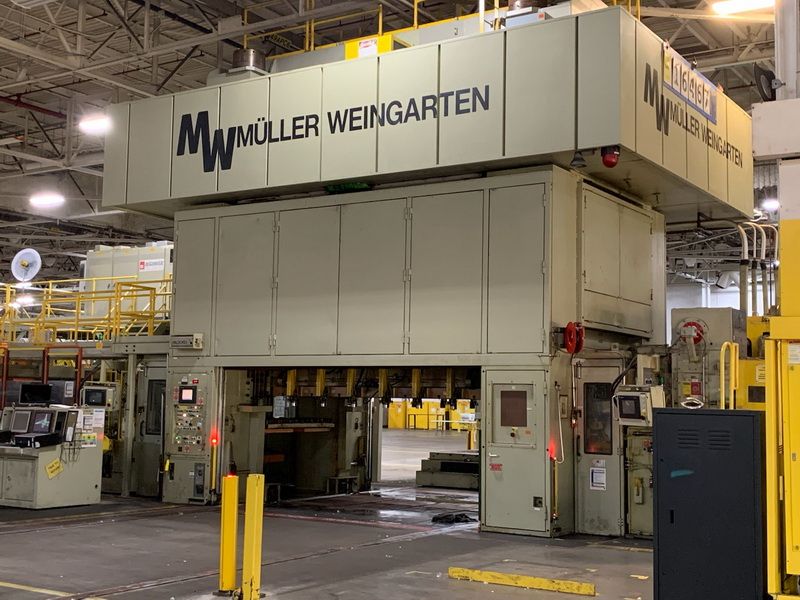

Mueller-Weingarten Mueller Weingarten Progressive Press 1500 Ton

Press Force: 1500 Ton
Type: Straight Side, Single Crank
Bolster Size: 4000 mm x 2600 mm
Bed Opening: 4500 mm x 2600 mm
Model: SL4-1500-4000-2600
Stroke: 450 mm
Adjustment: 150 mm
Shut Height: 1200 mm
SPM: 10-40 SPM
Coil Weight: 35 MT
Coil Outer Diameter: 750-2000 mm
Coil Inner Diameter: 610-630 mm
Feed Length: 0-458 mm
Feed Angle: Variable, 90-300 degrees
Pass Line Height: 1350 mm, optional 102 mm adjustment
Control System: Unico
PLC: Allen Bradley
Operator Interface: IBM, Wonderware
Line Speed: 98 fpm (30 mpm)
Line Direction: Left to Right
Front of Line Manufacturer: AFCO
Coil Shuttle: 35 MT x 2000 mm wide
Uncoiler: 35 MT x 2000 mm wide
Double Stub Mandrel
Peeler
Entry Pinch Roll
Crop Shear #1
HSS 50 MM Leveler
13 Roll Leveler
6 High Backups
Loop Thread Table
Roll Feed
Crop Shear #2
Scrap Chopper
Die Thread Table
Exit Pull Rolls
Hydraulic System
Material Thickness: 0.5 mm - 3.0 mm
Maximum Progression: 610 mm
Maximum Draw: 90 mm
Panel Depth: 125 mm
Conveyor Speed (Bolster, Exit Conveyor): 12-61 m/min
Conveyor Speed (Distribution Conveyor): 6-30.5 m/min
Stacking Conveyor Height: 458-839 mm
Turntable Length (Top): 2895 mm
Turntable Depth (Top): 2108 mm
Turntable Height: 355-712 mm
Turntable Tilt: Max 35 degrees
Controls: AB PLC 5/80 with ControlNet; AB 1305 Force Field Drives
End of Line: Mild & High Strength Steel, Mill Oil, Pre-lube, Electroplated, or Hot Dipped Zinc Coatings
