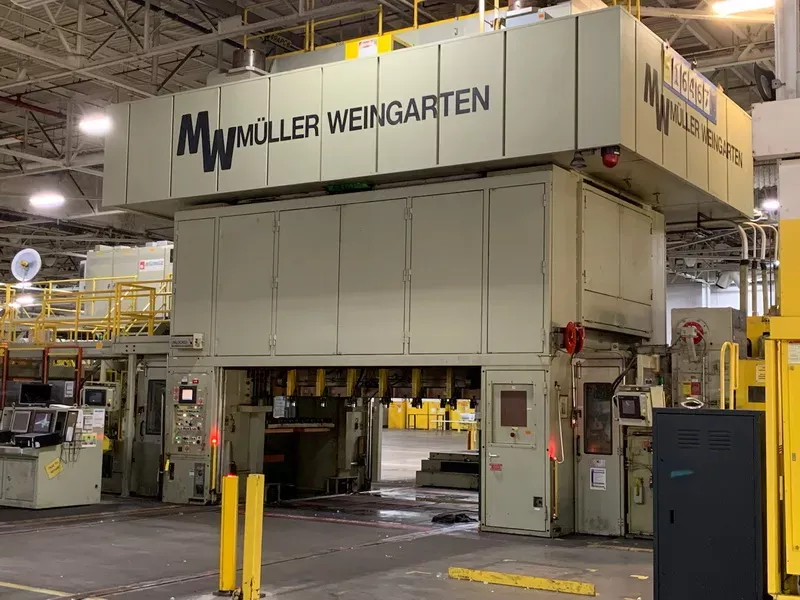

Mueller-Weingarten Progressive Press 1500 Ton Press Capacity

Bolster Size 4000 × 2600 mm
Bed Opening 4500 × 2600 mm
Stroke 450 mm
Adjustment 150 mm
Shut Height 1200 mm
Strokes Per Minute 10-40 SPM
Feed Direction Left to Right
Coil Weight 35 MT
Coil Outer Diameter 750-2000 mm
Coil Inner Diameter 610-630 mm
Feed Length 0-458 mm
Feed Angle Variable, 90-300 degrees, die dependent
Pass Line Height 1350 mm, optional 102 mm adjustment
Control System -
Drive System Unico
PLC Allen Bradley
Operator Interface IBM, Wonderware
Line Speed 98 fpm (30 mpm)
