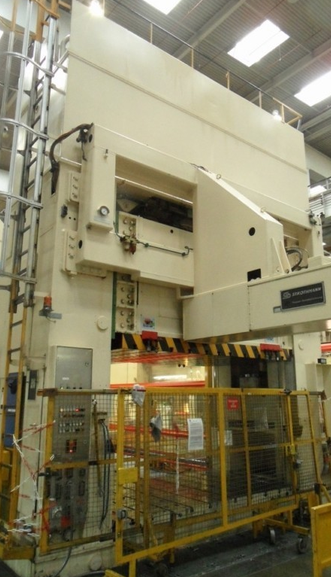

Muller ZE 800-31.1.3 800 t
Ref :
2804667-3-AW
Condition :
Used
Manufacturer :
Muller
Model :
ZE 800-31.1.3
Pressure :
800 t
Year(s) :
1972
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 800 t
Distance between columns: 3160 mm
Stroke: 1100 mm
Control: Siemens S5
Maximum table to ram distance: 1900 mm
Table size: 3100 × 1900 mm
Ram size: 3100 × 1900 mm
Die cushion pressure in table: 300 t
Die cushion stroke in table: 400 mm
Die cushion pressure in pusher: 80 t
Die cushion stroke in pusher: 150 mm
Hydraulic controlled die cushion in pusher
Hydraulic controlled die cushion in table
Total power: 200 kW
Weight: 150 t
Machine dimensions: 4.95 × 3.3 × 10.2 m
