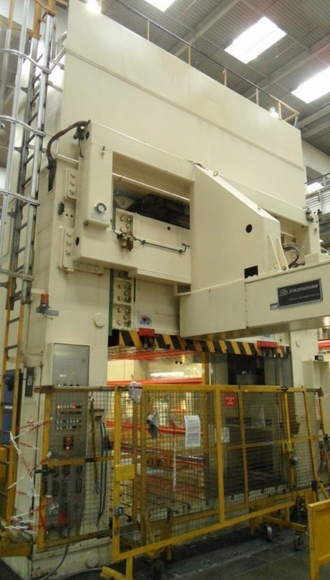

Muller ZE 800-31.1.4 800 ton
Ref :
2804313-3-AW
Condition :
Used
Manufacturer :
Muller
Model :
ZE 800-31.1.4
Pressure :
800 ton
Year(s) :
1972
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press Force: 800 ton
Distance Between Columns: 3160 mm
Stroke: 1100 mm
Control: Siemens S5
Maximum Daylight: 1900 mm
Table Size: 3100 × 1900 mm
Ram Size: 3100 × 1900 mm
Die Cushion Force (Table): 300 ton
Die Cushion Stroke (Table): 400 mm
Die Cushion Force (Pusher): 80 ton
Die Cushion Stroke (Pusher): 150 mm
Die Cushion in Table: Hydraulic, Controlled
Die Cushion in Pusher: Hydraulic, Controlled
Total Power: 200 kW
Machine Dimensions: 4.95 × 3.3 × 10.2 m
Machine Weight: 150 ton
