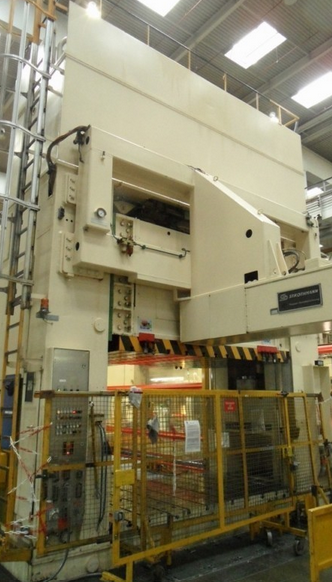

Muller ZE 800-31.1.5 800 t
Ref :
2802280-3-AW
Condition :
Used
Manufacturer :
Muller
Model :
ZE 800-31.1.5
Pressure :
800 t
Year(s) :
1972
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 800 t
Distance between columns: 3160 mm
Stroke: 1100 mm
Control: Siemens S5
Table surface area: 3100 x 1900 mm
Ram surface: 3100 x 1900 mm
Die cushion pressure inside table: 300 t
Die cushion stroke in table: 400 mm
Die cushion pressure in pusher: 80 t
Die cushion stroke in table: 150 mm
Distance table/blank holder (max stroke up adjustment): 1900 mm
Total power requirement: 200 kW
Machine weight: 150000 kg
Machine dimensions: 4950 x 3300 x 10200 mm
