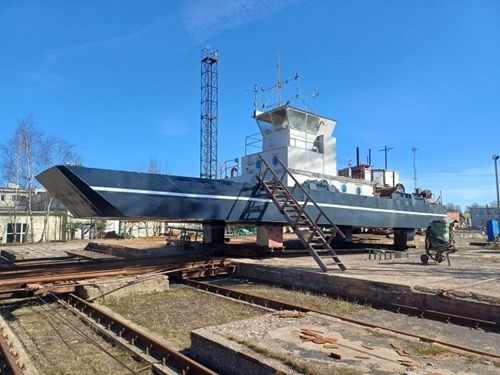

MULTI-PURPOSE WORK PLATFORM FOR DREDGING Self-Propelled Work Platform

Designed for dredging, technical engineering, and port maintenance
Length Overall (LOA): 23.5 m
Length Between Perpendiculars (LBP): 22.6 m
Beam: 7.5 m
Depth to Baseline: 1.5 m
Draft: 0.8 m

Spud System: 4 x 12 m spuds
Spud Handling: Hydraulic winch system
Propulsion System: Aquamaster
Main Engine: Scania LB 110
Main Engine Power: 149 kW
Generator Set: Cummins C11D5
Generator Output: 11 kVA
Battery System: 24V 160Ah
Alternators: Bosch 28V 38A (2 units)
Hydraulic Station: 120 L electric motor driven
Control System: Aquamaster Altigo 2250
Radio Communication System: ARP
Air Conditioning System: Installed
Safety Equipment: Included
Living Quarters: 3 rooms, 12 m2 each

Hydraulic Winch Units: 4
Spud Supports: 4 x 500×500 mm (12 m length)
Drain Tank Capacity: 1 m3
Fresh Water Tank Capacity: 2 m3

Additional Configuration:
Deck-mounted engine installation (no engine room)
Integrated bridge control system
Inland and port water operation capability
