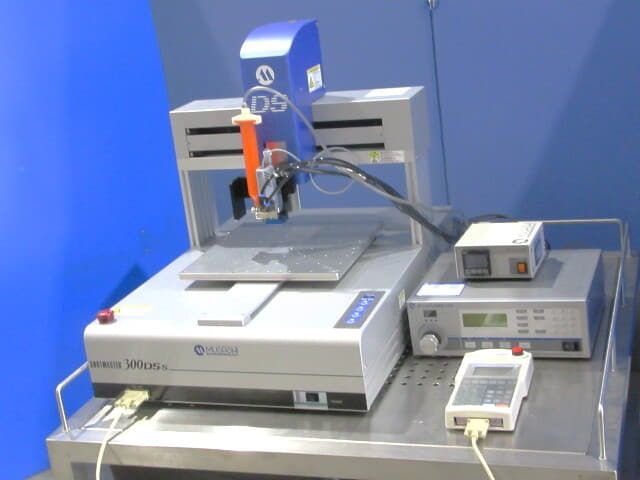

Musashi Engineering SHOTMASTER 300DSS-3A

• Device Type: desktop robot
• Operating Range X Axis: 300 mm
• Operating Range Y Axis: 300 mm
• Operating Range Z Axis: 60 mm
• PTP Maximum Speed X Axis: 500 mm/s
• PTP Maximum Speed Y Axis: 500 mm/s
• PTP Maximum Speed Z Axis: 170 mm/s
• Interpolation Maximum Speed X Axis: 100 mm/s
• Interpolation Maximum Speed Y Axis: 100 mm/s
• Interpolation Maximum Speed Z Axis: 100 mm/s
• Repeat Positioning Accuracy X Axis: ±0.005 mm
• Repeat Positioning Accuracy Y Axis: ±0.005 mm
• Repeat Positioning Accuracy Z Axis: ±0.002 mm
• Resolution: 0.001 mm
• Payload Y Axis: 20 kg
• Payload Z Axis: 15 kg
• Interpolation Function: 3D line
• Interpolation Function: 3D circle
• Interpolation Function: 3D arc
• Interpolation Function: 3D ellipse
• Interpolation Function: 3D elliptical arc
• Power Supply: AC 100–240 V, 50/60 Hz
• Power Consumption: 100 W
• External Dimensions: W 482 × D 630 × H 562.5 mm
• Mass: 32 kg

TCU-02-MU

• Device Type: resistance thermometer temperature control controller
• Control Method: PID control
• Temperature Adjustment Range: 30–100 °C
• Power Supply: AC 100 V, 50/60 Hz
• External Dimensions: W 130 × D 132 × H 69 mm
• Weight: 1.04 kg
