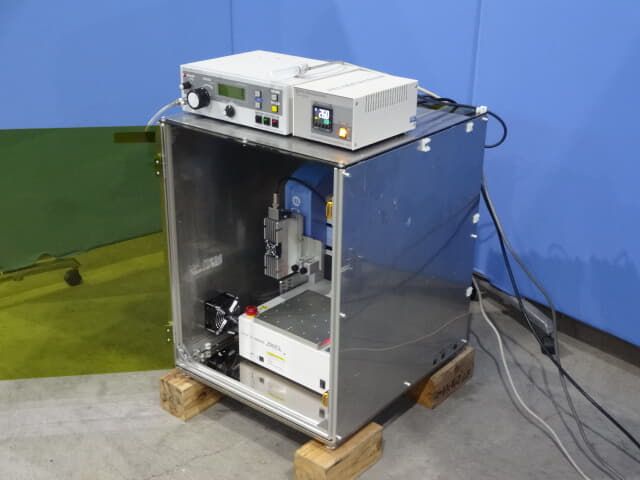

Musashi Engineering SHOTmini 200SX

• XY Axis Movement Range: 200 mm
• Z-Axis Operating Range: 50 mm
• Control Method: Point-to-point control
• Control Method: Interpolation control
• Interpolation Function: 3D line
• Interpolation Function: 3D arc
• Interpolation Function: 3D circle
• Interpolation Function: 3D elliptical arc
• Interpolation Function: 3D ellipse
• Interpolation Function: Spline
• Programming Method: Teaching pendant
• Programming Method: PC
• Program Capacity: 40,000 steps
• Number of Channels: 999
• Power Supply (Robot): AC 100–240 V, 50/60 Hz
• Power Consumption (Robot): 100 W
• External Width (Robot): 302 mm
• External Depth (Robot): 301 mm
• External Height (Robot): 440 mm
• Dispenser Model: SuperΣx-V7
• Dispenser Control Method: Microcomputer-controlled electro-pneumatic system
• Discharge Pressure Adjustment Range: 5.0–700.0 kPa
• Discharge Pressure Adjustment Range (Σ Mode): 40.0–700.0 kPa
• Discharge Time Setting Range (Time Mode): 20 ms–99.99 s
• Discharge Time Setting Range (Manual Mode): ≥50 ms
• Vacuum Pressure Setting Range: 0.0–20.0 kPa
• Dispensing Counter: 8-digit, resettable
• Supply Air Pressure: Max. 800 kPa
• Power Supply (Dispenser): AC 100–240 V, 50/60 Hz
• Power Consumption (Dispenser): 30 W
• External Width (Dispenser): 300 mm
• External Depth (Dispenser): 250 mm
• External Height (Dispenser): 100 mm
• Weight (Dispenser): 6.0 kg
• Temperature Controller Model: TCU-05FII-MU
• Power Supply (Temperature Controller): AC 100–240 V, 50/60 Hz
• Power Consumption (Temperature Controller): 45 W
