Goedhart, Mycom MYCOM/MAYEKAWA/GOEDHART NH3/CO2 Cascade Cooling Plant

Cooling Capacity: 3,828 kW / 1,125.88 tons

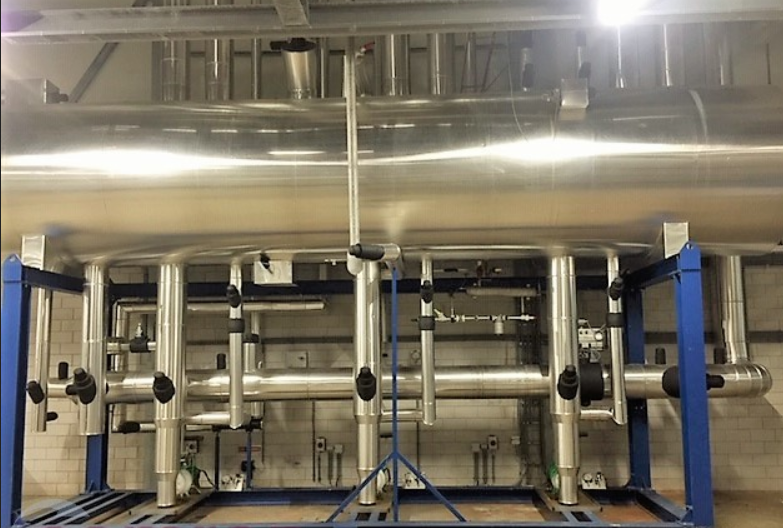

NH3/CO2 Cascade Cooling Plant
NH3 Separator Vessel: 770 dm3
NH3 Separator Temperature: -11°C
NH3 Separator Capacity: 5,000 kW
CO2 Plate Condensers: 3 × Alfa-Laval
Condenser Capacity: 1,250 kW each
Condenser Operating Temperature: -11°C / -7°C
CO2 Liquid Vessel Capacity: 9,600 dm3
CO2 Liquid Vessel Temperature: -10°C
CO2 Liquid Vessel Capacity Rating: 3,750 kW
CO2 Liquid Pumps: 3
CO2 Pump Capacity: 21 m3/h each
Cooling Evaporators: 42
Evaporators with 5 Fans: 21
Evaporators with 6 Fans: 21
Fan Motor Power: 2.2 kW each
Fin Spacing: 10 mm
Airflow Direction: Vertical Downward
Airflow Direction Option: Horizontal
Evaporator Material: Copper/Aluminum
Seawater Resistant Construction
Air Defrost
Hot Gas Defrost Possible
Plate Heat Exchanger: 225 kW
Water Inlet Temperature: +18°C
Water Outlet Temperature: +24°C
Custom Control Cabinets
Switch Cabinets
Siemens S7-300 PLC
Touchscreen
Heat Pump Installation
Maximum Water Outlet Temperature: 69°C
Piston Compressor Package: N6HS
Frequency Controlled Compressor
Electric Motor: 315 kW
Motor Protection: IP55
Heating Capacity: 1,678 kW
Pressure Certificates
Electrical Drawings
Refrigerant: NH3 / CO2
Voltage: 400 V
Absorbed Power: 1,347 kW
Optional Compressor Installation: Grasso
Optional Compressor Installation: Mycom
Optional Compressor Installation: Howden
Optional Compressor Installation: Sabroe
