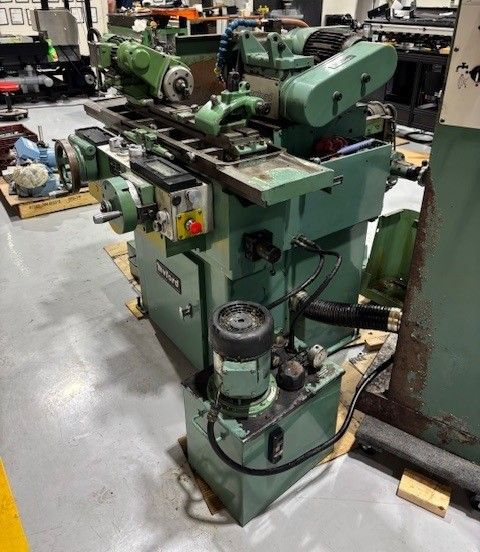

Myford MG12-HPM

Maximum Grinding Diameter: 3 in
Swing Over Table: 5 in
Capacity Between Centers: 12 in
Maximum Table Travel: 13.75 in
Table Swivel: ±10 degrees
Table Travel per Handwheel Revolution: 0.44 in
Hydraulic Table Traverse: 0 – 120 ipm
Dwell Time: 0 – 8 sec
Total Wheelhead Travel by Feed Screw: 3.875 in
Hydraulic Rapid Retraction: 1.125 in
Infeed per Handwheel Revolution: 0.04 in
Wheel Feed Graduation: 0.0002 in
Fine Feed to Dead Stop: 0.00005 in
Total Plunge Infeed: 0.100 in
Maximum Plunge Feed Rate: 0.125 ipm
Minimum Plunge Feed Rate: 0.0025 ipm
Maximum Intermittent Infeed Coarse: 0.002 in
Minimum Intermittent Infeed Fine: 0.00005 in
Sparkout Timer: 0 – 50 sec
Wheel Speeds: 1830 / 1988 rpm
Grinding Wheel Size: 12 x 1.5 x 5 in
Minimum Wheel Diameter for Zero Work Diameter: 10 in
Workhead Spindle Speed: 50 – 900 rpm
Capacity Through Standard Draw Tube: 0.75 in
Maximum Collet Capacity: 0.75 in
Hydraulic Table Traverse
Automatic Infeed
Plunge Infeed
Variable Dwell at Each End of Table Movement
Automatic Hydraulic Rapid Advance and Retraction of Wheelhead
Sparkout Timer
Visual Feed Cycle Indicator
Depth of Feed Adjustment Control
Automatic Cycle and Manual Operation Selector
Coarse and Fine Feed Changeover
Infinitely Variable Workhead Spindle Speeds
Automatic Lubrication for Wheelhead and Carriage Ways
Separate Electrical Console Control
Coolant System
Accessories
Electrical: 3 Phase / 60 Hz / 220V
Machine Weight: 2226 lb
