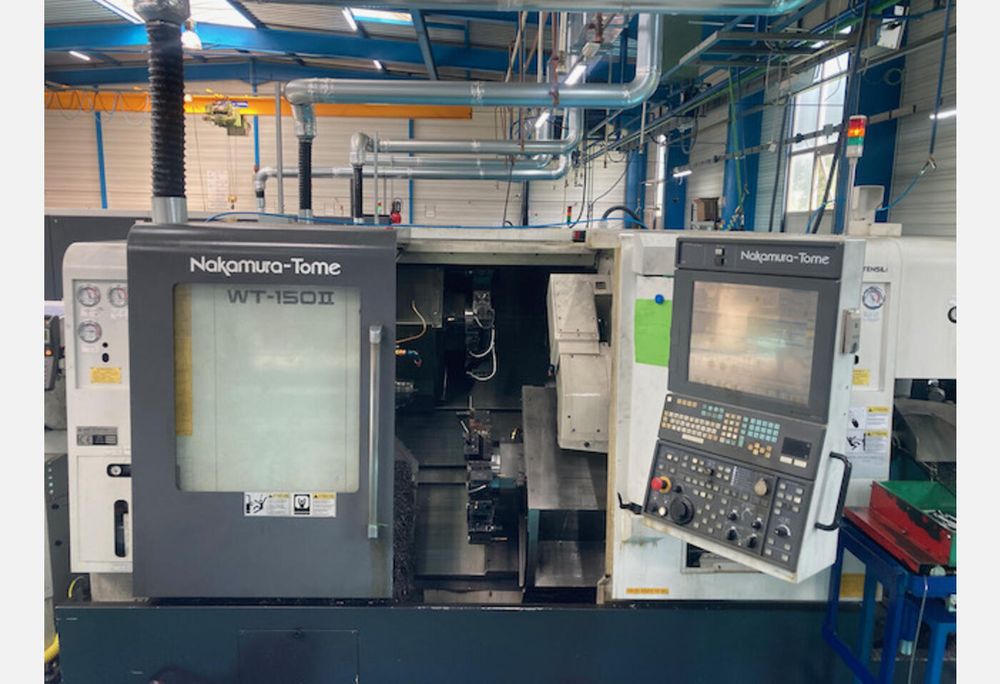

Nakamura FANUC CNC 5000 RPM WT 150 II 2 Axis

NAKAMURA WT 150 II
2013

65 mm Maximum Bar Diameter (Main Spindle)
190 mm Maximum Turning Diameter
515 mm Maximum Turning Length
A2-5 Spindle Nose (Main Spindle)
5000 RPM Spindle Speed (Main Spindle)
15/11 kW Spindle Power (Main Spindle)
360° C Axis with 0.001° Indexing (Main Spindle)
65 mm Maximum Bar Diameter (Sub Spindle)
A2-5 Spindle Nose (Sub Spindle)
5000 RPM Spindle Speed (Sub Spindle)
11/7.5 kW Spindle Power (Sub Spindle)
360° C Axis with 0.001° Indexing (Sub Spindle)
12 Stations on Upper Turret
12 Motorized Positions on Upper Turret
167.5 mm X-Axis Travel (Upper Turret)
±35 mm Y-Axis Travel (Upper Turret)
515 mm Z-Axis Travel (Upper Turret)
12 Stations on Lower Turret
12 Motorized Positions on Lower Turret
167.5 mm X-Axis Travel (Lower Turret)
515 mm Z-Axis Travel (Lower Turret)
FANUC CNC
CNC Parts Collector
Two High-Pressure Pumps
Set of Fixed and Rotating Tool Holders
Chip Conveyor
IEMCA MASTER 880 VERSO Barloader
Machine Operated with Whole Oil
