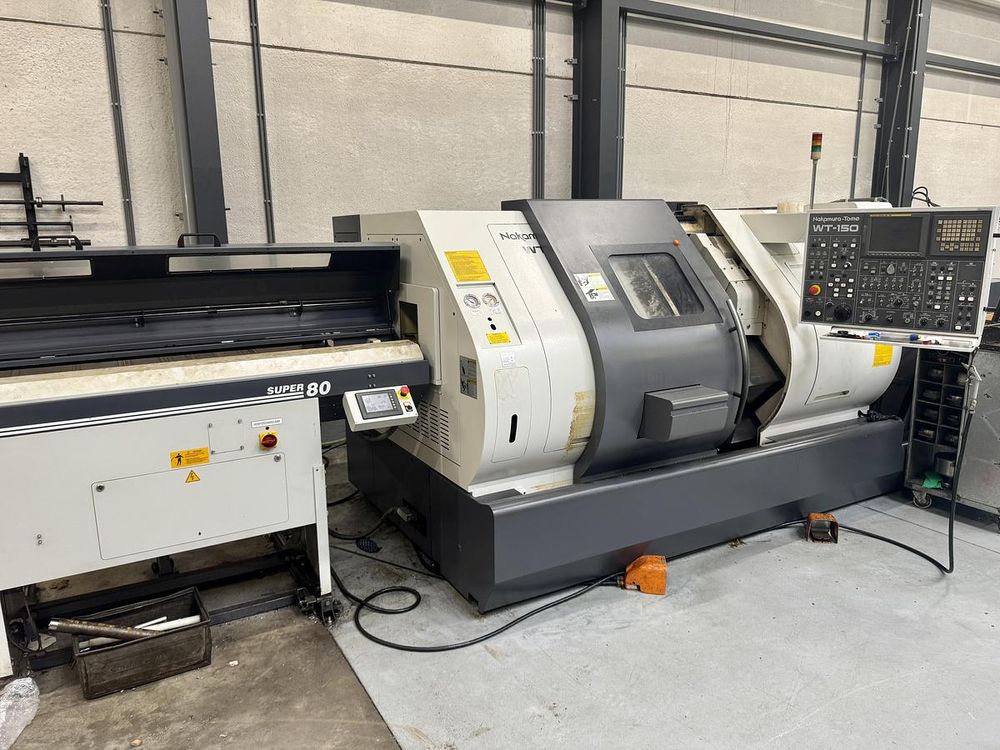

Nakamura Tome FANUC 18i-TB 5000 rpm WT150 5 Axis

Ref : 2779616-3-AW

Condition : Used

Manufacturer : Nakamura Tome

Controller : FANUC 18i-TB

Spindle Speed : 5000 rpm

Model : WT150

Nb Of Axis : 5 Axis

Year(s) : 2008

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel: 157.5 mm
Y-Axis Travel: 35 mm
Z-Axis Travel: 464.8 mm
B-Axis Travel: 600 mm
C-Axis: 360° (0.001°)
Control: FANUC 18i-TB
Turning Length: 399 mm
Max Turning Diameter: 190 mm
Distance Between Spindle Centers: 750 mm
Bar Work Capacity: 52 mm
Main Spindle Speed: 5000 rpm
Counter Spindle Speed: 4500 rpm
Milling Function: Both Turrets
Driven Tool Speed: 6000 rpm
Upper Turret Tool Slots: 12
Lower Turret Tool Slots: 12
Machine Weight: 8500 kg
Swarf Conveyor
Bar Feeder
