Nakamura Tome FANUC 31i-B-NT-IPS 4500 NTJ-100

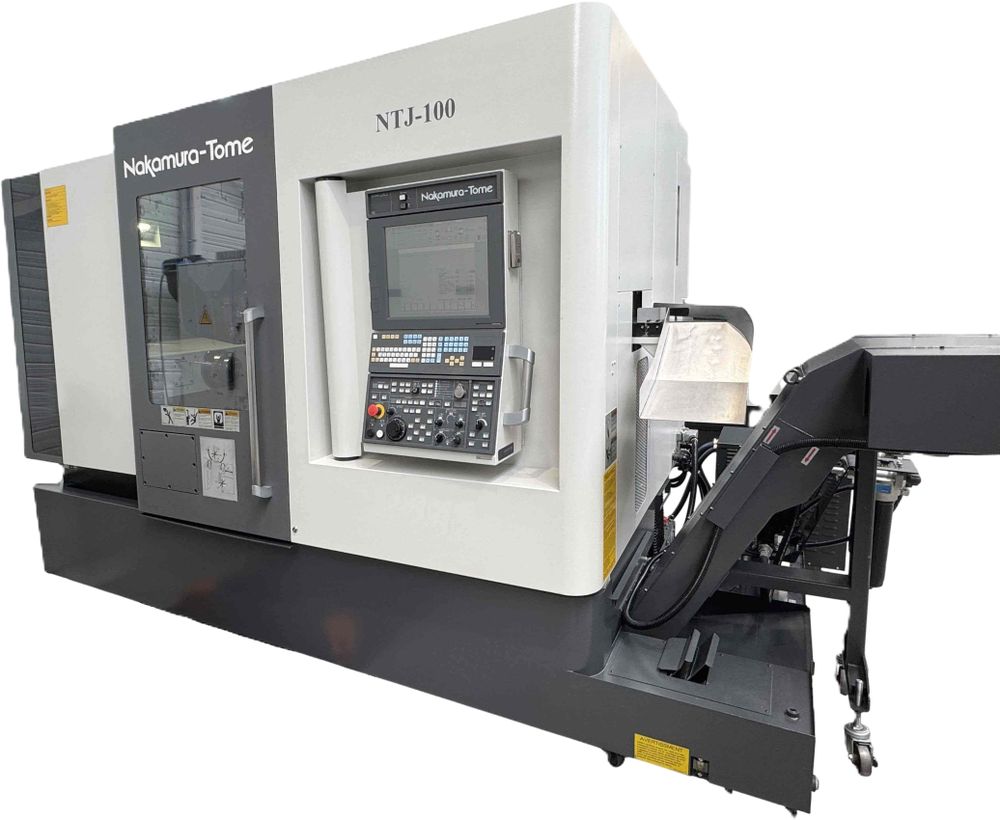

CNC Lathe Nakamura NTJ-100



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2013
CNC control: FANUC 31i-B-NT-IPS
Colour touch screen: 19 ["]
Distance between spindles: 910 [mm]
Max. cutting diameter: 175 [mm]
Max. turning lenght: 678 [mm]
Stroke Z1 axis: 1040 [mm]
Stroke X1 axis: 330 [mm]
Stroke Y1 axis: +/- 40 [mm]
Stroke Z2 axis: 678 [mm]
Stroke X2 axis: 127.5 [mm]
Stroke Y2 axis: +/- 32.5 [mm]
B axis swivelling stroke: 182 [°]
Rapid traverse rate X axis: 20000 [mm/min]
Rapid traverse rate Z axis: 40000 [mm/min]
Rapid traverse rate Y axis: 6000 [mm/min]
Spindle nose: A2-6"
Max. bar diameter: 65 [mm]
Max. spindle speed: 4500 [rpm]
Increment C-axis: 0.001 [°]
Spindle power: 11 [kW]
Counter spindle nose: A2-5"
Max. bar diameter counter spindle: 42 [mm]
Max. counter spindle speed: 5000 [rpm]
Counter spindle increment C-axis: 0.001 [°]
Counter spindle power: 7.5 [kW]
Number of tool stations - Turret 1: 24
Number of tool stations driven - Turret 1: 12
Max. speed driven tools - Turret 1: 6000 [rpm]
Number of tool stations - Turret 2: 24
Number of tool stations driven - Turret 2: 12
Max. speed driven tools - Turret 2: 6000 [rpm]
Live tools power: 7.1 [kW]
Total power required: 77 [kVA]
Supply voltage: 400 [V]
Machine dimensions: 3799 x 2100 x 2565 [mm]
Weight: 10000 [Kg]

More information upon request.
