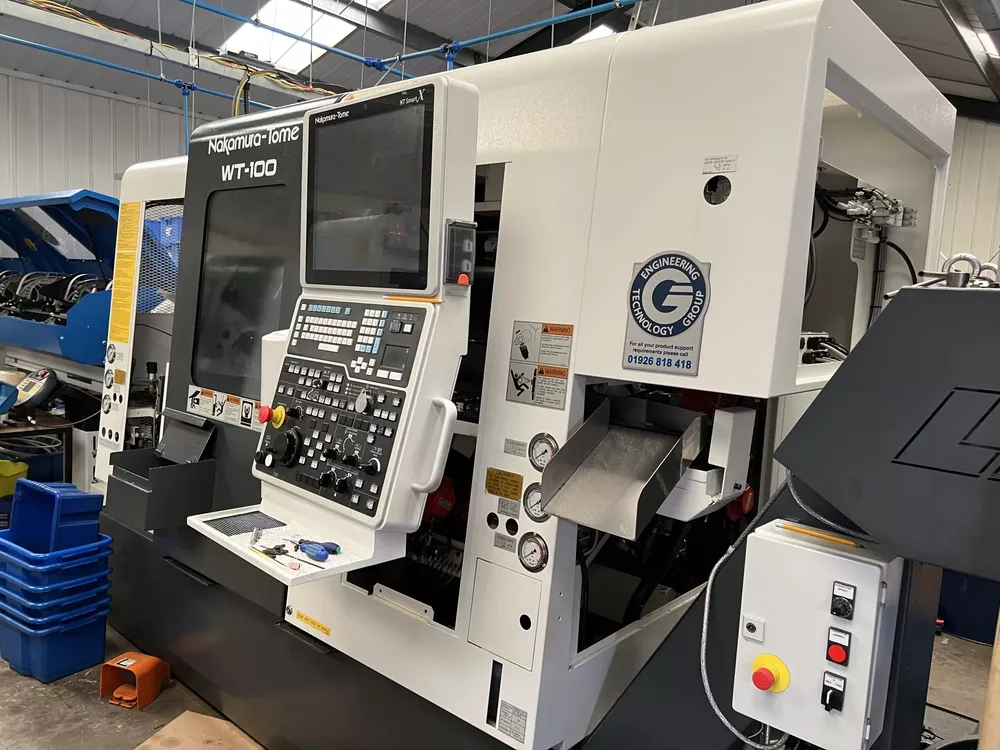

Nakamura Nakamura-Tome NT Smart X 6,000 rpm WT-100 7 Axis

X1/X2-axis travel: 135 mm
Y1-axis travel: 62 mm
Z1/Z2-axis travel: 503 mm
W-axis travel: 865 mm
C-axis
Control: Nakamura-Tome NT Smart X
Max. turning diameter: 190 mm
Standard turning diameter: 210 mm
Max. turning length: 503 mm
Main spindle drive power: 11 kW
Main spindle speed: 6,000 rpm
Main spindle nose: A2-5
Max. bar capacity: 42 mm
Sub spindle power output: 11 kW
Sub spindle speed: 6,000 rpm
Sub spindle nose: A2-5
Milling drive power: 7.1/2.2 kW
Max. driven tool speed: 6,000 rpm
Tool turret: 2 × 12-position (24 stations)
Driven tool positions: 2 × 12

Parts catcher type G incl. conveyor belt
Parts catcher type A
Swarf conveyor
Bar feeder FMB Turbo 5-65/3200A, year 2019
