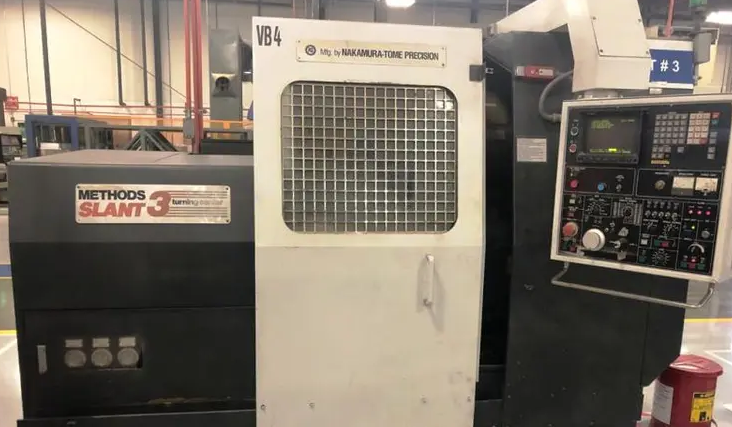

Nakamura Tome CNC (Fanuc 11-T) 3,500 RPM SLANT 3B 2 Axis

Ref : 2754453-3-MT

Condition : Used

Manufacturer : Nakamura Tome

Controller : CNC (Fanuc 11-T)

Spindle Speed : 3,500 RPM

Model : SLANT 3B

Nb Of Axis : 2 Axis

Year(s) : 1985

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing Over Bed: 31"
Swing Over Saddle: 18.9"
Swing Over Front Door: 22"
Swing Over Slide Cover: 27.17"
Max. Turning Diameter: 15.75"
Max. Turning Length: 21.26"
Number of Axes: 2
Control: CNC (Fanuc 11-T)
Bar Capacity: 2.5"
Max RPM: 3,500 RPM
Chuck Size: 10"
Turret Stations: 12
Tailstock: Yes

Equipped With
Fanuc 11-T CNC Control
12-Position Turret
10" 3-Jaw Chuck
