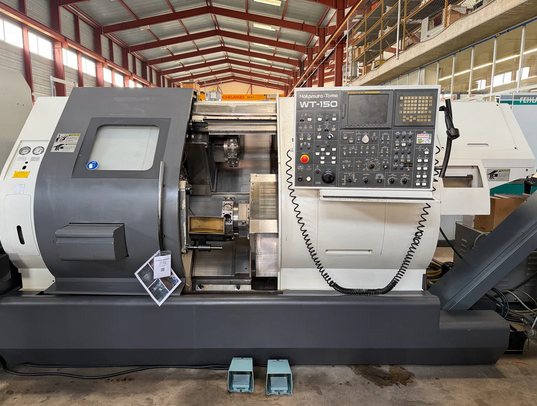

Nakamura Tome GE FANUC Series 16i-MB 6000 RPM WT-150 2 Axis

X-Axis Travel: 207.5 mm
Z-Axis Travel: 300 mm
Y-Axis Travel: ±30 mm
Rapid Traverse X-Axis: 12 m/min
Rapid Traverse Z-Axis: 40 m/min
C Axis Resolution: 0.001°
Control: GE FANUC Series 16i-MB
High Pressure Coolant
Preparation for Loader
Loader Interface
Parts Catcher
Chip Conveyor
Foot Pedal
Lamp
Swing Over Cross-Slide: 310 mm
Turning Diameter: 310 mm
Turning Length: 255 / 755 mm
Spindle Bore: 51 mm
Spindle Speed: 60 - 6000 RPM
Back Spindle Speed: 6000 RPM
Spindle Motor Power: 7.5 / 5.5 kW
Back Spindle Internal Diameter: 42 mm
Back Spindle Power: 7.5 / 5.5 kW
Spindle Nose: A2-5
Inner Cone Diameter: 25 mm
Driven Tool Power: 3.2 / 2.7 kW
Turret 1 Positions: 12
Turret 2 Positions: 12
Driven Tools Turret 1: 12
Driven Tools Turret 2: 12
Number of Spindles: 2
Number of Turrets: 2
Voltage: 400 V / 50 Hz / 3 Phase
Machine Weight: 8500 kg
Machine Dimensions: 3850 x 2330 x 2320 mm
Set of Steel Holders
Set of Toolholders
