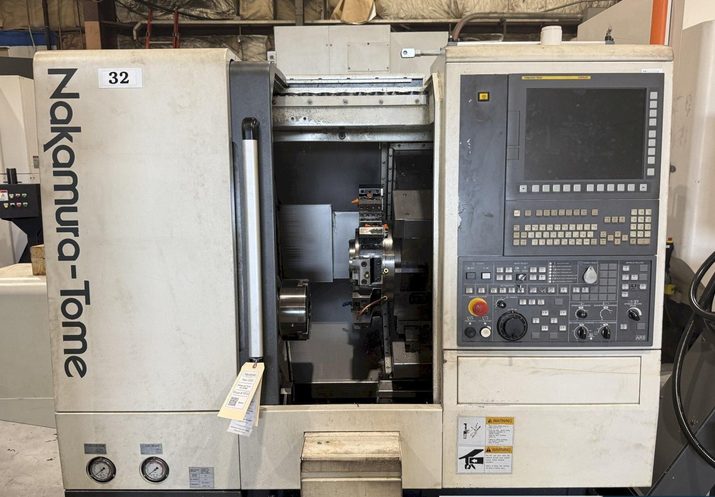

Nakamura Tome Nakamura Fanuc CNC 4,500 rpm AS-200MY 4 Axis

X-axis travel: 9"
Y-axis travel: 1.6"
Z-axis travel: 12.6"
C-axis indexing: 0.001°
Rapid traverse X-axis: 945 ipm
Rapid traverse Y-axis: 236 ipm
Rapid traverse Z-axis: 1,418 ipm
Control: Nakamura Fanuc CNC
Y-axis
Bar capacity: 2.6"
Swing: 15.8"
Maximum turning diameter: 13.4"
Center distance: 11.8"
Spindle speed: 4,500 rpm
Main motor: 20 HP
Spindle nose: A2-6
Live tooling speed: 6,000 rpm
Live tooling motor: 7.5 HP
5" chuck
12-position turret
24 live milling positions
Automatic door
Chip conveyor
High-pressure coolant
Machine weight: 3,200 lb
