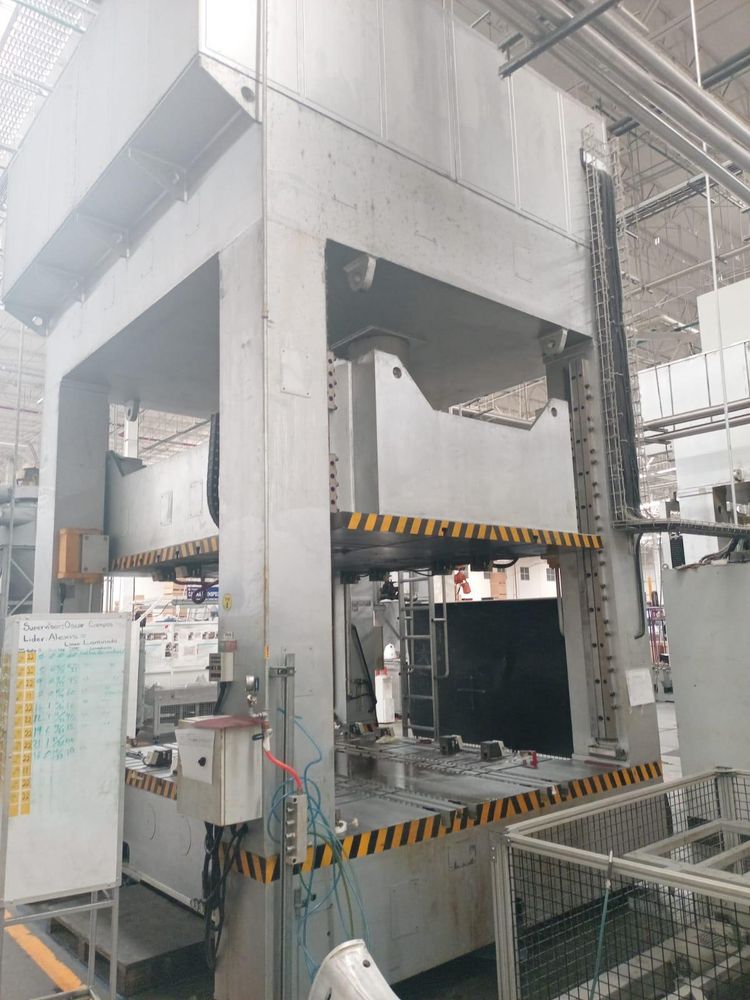

NANTONG YQK34-400 4000 kN

Nominal force 4000 kN
Return force 1000 kN
Cushion force 1000 kN
Max pressure of hydraulic system 25 MPa
Stroke slide 900 mm
Stroke cushion 350 mm
Max daylight 1500 mm
Slide speed descent 140 mm/s
Slide speed pressing 5–15 mm/s
Slide speed return 70 mm/s
Table dimensions L–R 3600 mm
Table dimensions F–B 2450 mm
Cushion dimensions L–R 2200 mm
Cushion dimensions F–B 1500 mm
Height of table above floor 500 mm
Total power 45 kW
Total weight 49500 kg
Overall dimensions L–R 4120 mm
Overall dimensions F–B 3600 mm
Height above floor 8100 mm

Features
Four-column frame
PLC and controls Siemens
