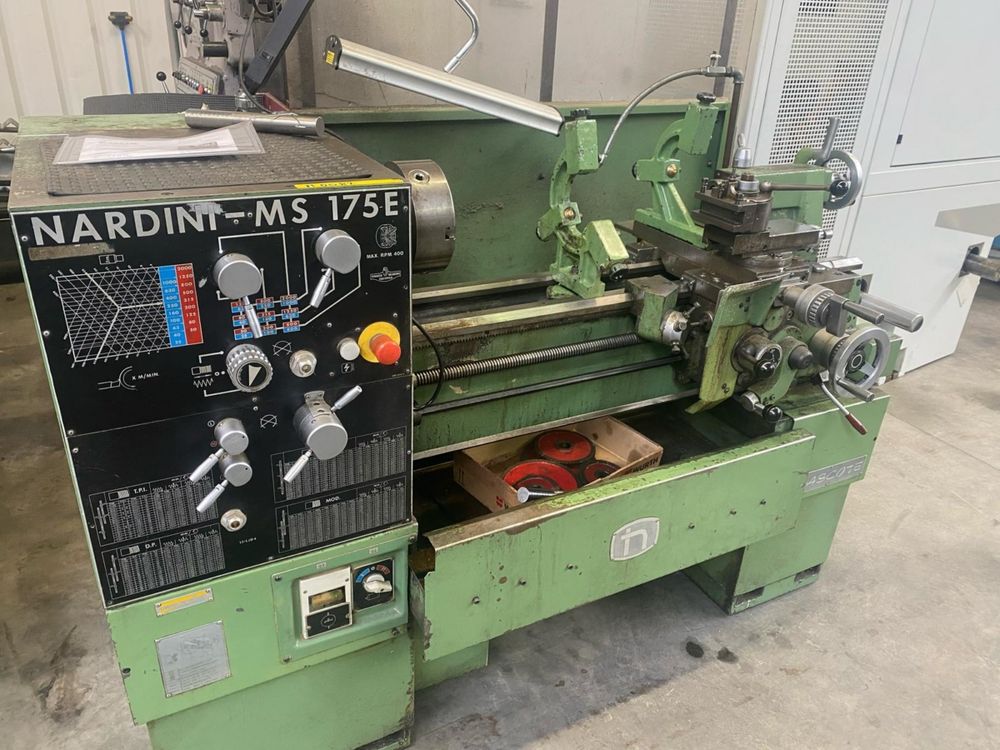

Nardini Engine Lathe 2000 rpm MS 175 E

Nardini MS 175 E
Year of manufacture 1994

--> Centre height: 175 mm
--> Centre width: 800 mm
--> Swing diameter over bed: 350 mm
--> Swing diameter over support: 310 mm
--> Gap length in front of the faceplate: 145 mm
--> Cross slide travel: 205 mm
--> Top slide travel: 100 mm
--> Tool cross-section: 20x20 mm

--> Bed Width: 220 mm
--> Height: 300 mm

--> Headstock Spindle bore: 46 mm
--> Spindle nose: DIN 55027-5
--> Spindle inner taper: 1:20
--> Tool holder: MK-3
--> Spindle speeds: 18
--> Speed range: 25 - 2000 rpm

--> Tailstock Quill diameter: 50 mm
--> Quill inner taper: MK-3
--> Quill travel: 140 mm
--> Lateral adjustment: 10 mm

--> Feed range Number of feeds: 256
--> Longitudinal feeds (128): 0.042 - 0.929 mm Rev
--> Cross feeds (128): 0.015 - 0.338 mm Rev

3 - jaw chuck
Multifix steel holder size B, 1 x inserts
2 x travelling steady rest,
Operating instructions
