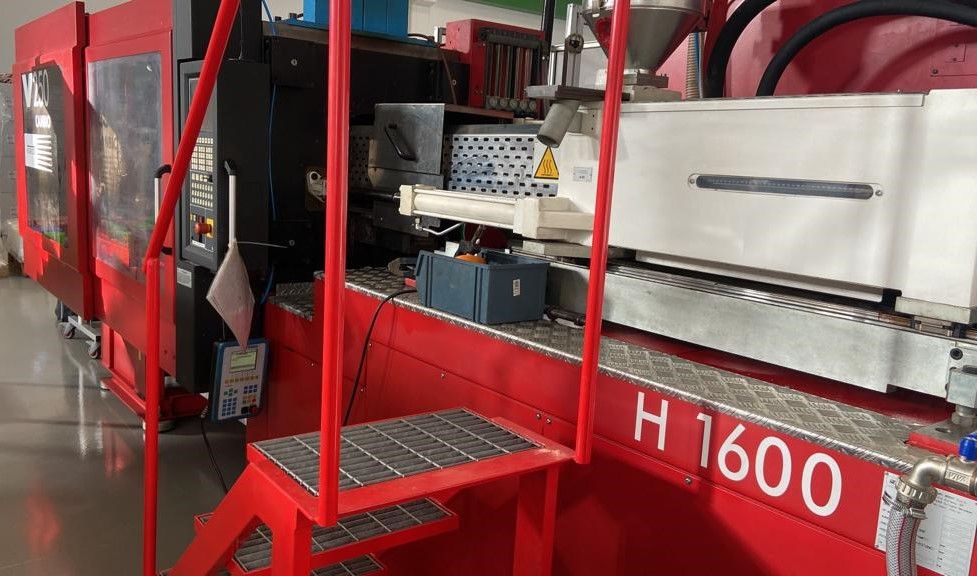

Negri Bossi Plastic Injection Molding Machine 250 T
Ref :
678CV1
Condition :
Used
Manufacturer :
Negri Bossi
Model :
Plastic Injection Molding Machine
Capacity :
250 T
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
Italy
Italy
Maximum Traveling Platen Stroke: 550 mm,
Maximum Clearance Between Platens: 1300 mm,
X-Column Clearance: 630 mm,
Y-Column Clearance: 530 mm,
Plate Length: 900 mm,
Plate Width: 790 mm,
Min/Maximum Mold Thickness: 300/750 mm,
Mold Dimensions: L x W x H 7050 × 1640 × 2215 mm,
Maximum Ejection Stroke: 220 mm,
Ejection Force: 45 kN,
Maximum Installed Power: 56 kW,
Cylinder: H 1600,
Screw: 250 rpm,
Drawing Motor: HYDRAULIC,
Accessories: Robot interface - 2 oil jacks - 3 blowers,
Machine weight: 9,660 kg.
